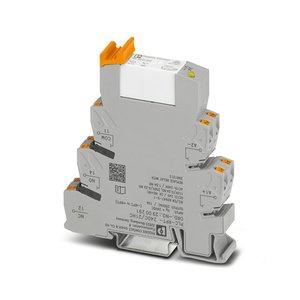

Phoenix PLC-RPT- 24DC/21HC Relay Module
The Phoenix PLC-RPT- 24DC/21HC Relay Module (Part No: 2900291 ) offers a 24 V DC nominal input voltage UN, 20.2 V DC ... 33.6 V DC (20 Β°C) input voltage range, polarized Drive, 8 ms typical response time. Manufactured by Phoenix under the Phoenix Relay Module category, this model belongs to the Phoenix PLC Series.
| Brand | Phoenix Contact |
| Product Type | Relay Module |
| Model Number | PLC-RPT- 24DC/21HC |
Phoenix PLC-RPT- 24DC/21HC Relay Module β Technical Specifications
| Specification | Value |
|---|---|
| Product type | Relay Module |
| Product family | PLC-INTERFACE |
| Application | High continuous currents |
| Mechanical service life | 3x 107 cycles |
| Insulation | Safe isolation, reinforced insulation |
| Overvoltage category | III |
| Pollution degree | 3 |
| Maximum power dissipation for nominal condition | 0.43 W |
| Test voltage (Winding/contact) | - |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated surge voltage | 6 kV |
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 20.2 V DC ... 33.6 V DC (20 Β°C) |
| Drive and function | monostable |
| Drive (polarity) | polarized |
| Typical input current at UN | 18 mA |
| Typical response time | 8 ms |
| Typical release time | 10 ms |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Operating voltage display | Yellow LED |
| Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
| Limiting continuous current | 10 A |
| Maximum inrush current | 30 A (300 ms) |
| Min. switching current | 10 mA (12 V) |
| Interrupting rating (ohmic load) max. | 240 W (at 24 V DC) |
| Switching capacity | 2 A (at 24 V, DC13) |
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section flexible | 0.14 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section AWG | 26 ... 14 |
| Tightening torque | - |
| Width | 14 mm |
| Height | 80 mm |
| depth | 94 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 (Housing) |
| Degree of protection (Relay) | RT II (Relay) |
| Degree of protection (Relay base) | IP20 (Relay base) |
| Ambient temperature (operation) | -40 Β°C ... 60 Β°C |
| Ambient temperature (storage/transport) | -40 Β°C ... 85 Β°C |
| Temperature | D |
| Humidity | A |
| Vibration | B/C |
| EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Electromagnetic compatibility | Conformance with EMC directive |
| Standards/regulations | IEC 60947-5-1 |
| Mounting Type | DIN rail mounting |
| Mounting position | any |
| Contact Connection type | - |
| Output fuse | - |
| Degree of protection (Installation location) | - |
Please speak to our Technical Engineer for the Phoenix High Continuous Currents Relay PLC-RPT-24DC/21HC (Part No: 2900291) at attractive prices. Technical Specs Summary of PLC-RPT-24DC/21HC, 2900291 includes Relay Module type and PLC-INTERFACE Product family, offering a versatile solution for high continuous current applications. This relay module features a mechanical service life of 3x 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 0.43 W, it operates efficiently at a nominal input voltage of 24 V DC, within an input voltage range of 20.2 V DC to 33.6 V DC (at 20 Β°C). The module has a typical input current of 18 mA at UN, with a response time of 8 ms and a release time of 10 ms.
Equipped with reverse polarity protection and a polarity protection diode for safety, it includes 1 changeover contact made from Push-in connection method. Match your needs with a quote for your requirement of Phoenix High Continuous Currents Relay. We lead with pricing that's more favorable and support that's more attentive than other suppliers & traders. For more information, check the PLC-RPT-24DC/21HC datasheet, PLC-RPT-24DC/21HC price, or PLC-RPT-24DC/21HC manual.
