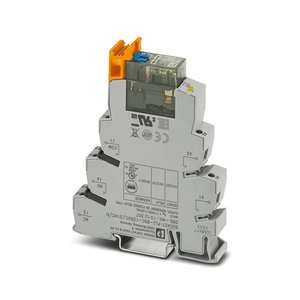

Phoenix PLC-RPT- 12DC/21AU/MS Relay Module
The Phoenix PLC-RPT- 12DC/21AU/MS Relay Module (Part No: 2909671 ) offers a 12 V DC nominal input voltage UN, 9.7 V DC ... 16.8 V DC (20 Β°C) input voltage range, polarized Drive, 5 ms typical response time. Manufactured by Phoenix under the Phoenix Relay Module category, this model belongs to the Phoenix PLC Series.
| Brand | Phoenix Contact |
| Product Type | Relay Module |
| Model Number | PLC-RPT- 12DC/21AU/MS |
Phoenix PLC-RPT- 12DC/21AU/MS Relay Module β Technical Specifications
| Specification | Value |
|---|---|
| Product type | Relay Module |
| Product family | PLC-INTERFACE |
| Application | Palm switch |
| Mechanical service life | 2x 107 cycles |
| Insulation | - |
| Overvoltage category | III |
| Pollution degree | - |
| Maximum power dissipation for nominal condition | 0.18 W |
| Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated surge voltage | - |
| Nominal input voltage UN | 12 V DC |
| Input voltage range | 9.7 V DC ... 16.8 V DC (20 Β°C) |
| Drive and function | monostable |
| Drive (polarity) | polarized |
| Typical input current at UN | 15.3 mA |
| Typical response time | 5 ms |
| Typical release time | 8 ms |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Operating voltage display | Yellow LED |
| Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact |
| Contact material | AgSnO, hard gold-plated |
| Maximum switching voltage | 250 V AC/DC |
| Limiting continuous current | 6 A |
| Maximum inrush current | 50 mA |
| Min. switching current | 10 mA (at 12 V) |
| Interrupting rating (ohmic load) max. | 140 W (at 24 V DC) |
| Switching capacity | 2 A (at 24 V, DC13) |
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section flexible | 0.14 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section AWG | 26 ... 14 |
| Tightening torque | - |
| Width | 6.2 mm |
| Height | 80 mm |
| depth | 94 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 (Housing) |
| Degree of protection (Relay) | RT III (Relay) |
| Degree of protection (Relay base) | IP20 (Relay base) |
| Ambient temperature (operation) | -40 Β°C ... 60 Β°C |
| Ambient temperature (storage/transport) | -40 Β°C ... 85 Β°C |
| Temperature | D |
| Humidity | A |
| Vibration | B/C |
| EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Electromagnetic compatibility | Conformance with EMC directive |
| Standards/regulations | IEC 60664 |
| Mounting Type | DIN rail mounting |
| Mounting position | any |
| Contact Connection type | - |
| Output fuse | 4 A gL/gG NEOZED |
| Degree of protection (Installation location) | - |
Talk to Our Engineer for Phoenix 12V Input Voltage Relay PLC-RPT- 12DC/21AU/MS part no: 2909671 with exclusive offers. Core System Specifications of PLC-RPT- 12DC/21AU/MS, 2909671 are Relay Module type and PLC-INTERFACE Product family a versatile solution for Palm switch applications. This relay module features a mechanical service life of 2x 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 0.18 W, it operates efficiently at a nominal input voltage of 12 V DC, within an input voltage range of 9.7 V DC ... 16.8 V DC (20 Β°C). The module has a typical input current of 15.3 mA at UN, with a response time of 5 ms and a release time of 8 ms. It is equipped with a Reverse polarity protection; Polarity protection diode for protection and includes 1 changeover contact made from Push-in connection Connection method. Don't Miss Out on a Quote for your requirement of Phoenix 12V Input Voltage Relay. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
