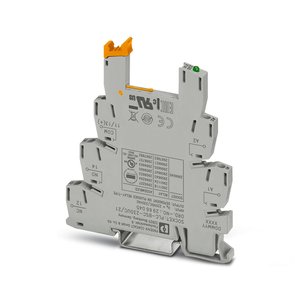

Phoenix PLC-BSC-230UC/21 Relay Socket
The Phoenix PLC-BSC-230UC/21 Relay Socket (Part No: 2966045 ) offers a Screw connection method, 0.14 mmΒ² ... 2.5 mmΒ² conductor cross section rigid, 0.14 mmΒ² ... 2.5 mmΒ² conductor cross section flexible, DIN rail mounting mounting type. Manufactured by Phoenix under the Phoenix Relay Socket category, this model belongs to the Phoenix PLC Series.
| Brand | Phoenix Contact |
| Product Type | Relay Socket |
| Model Number | PLC-BSC-230UC/21 |
Phoenix PLC-BSC-230UC/21 Relay Socket β Technical Specifications
| Specification | Value |
|---|---|
| Product type | Relay socket |
| Product family | PLC-INTERFACE |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.14 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section flexible | 0.14 mmΒ² ... 2.5 mmΒ² |
| Width | 6.2 mm |
| Height | 80 mm |
| Color | gray (RAL 7042) |
| Ambient temperature (operation) | -40 Β°C ... 55 Β°C |
| Ambient temperature (storage/transport) | -40 Β°C ... 85 Β°C |
| Mounting type | DIN rail mounting |
| Mounting position | any |
| Application | Universal |
| Protective circuit | Bridge rectifier |
| Nominal input voltage UN | 230 V AC/DC |
| Conductor cross section AWG | 26 ... 14 |
| Tightening torque | 0.6 Nm ... 0.8 Nm |
| Status display | LED |
| Depth | 94 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| Enclosure Low | Required protection according to the Rules shall be provided upon installation on board |
| Low Voltage Directive | Conformance with Low Voltage Directive |
| Electromagnetic compatibility | Conformance with EMC directive |
| Maximum switching voltage | - |
| Overvoltage category | II |
| Standards/regulations | IEC 60664 |
| Rated control circuit supply voltage US | - |
| Voltage range with reference to US | - |
Reach us by email for Phoenix 230 V AC/DC Input Voltage Relay Base PLC-BSC-230UC/21 (Part No: 2966045) at discounted rates. The key technical features of PLC-BSC-230UC/21, 2966045, include its product family, PLC-INTERFACE, designed for versatile industrial applications. This sensor features a reliable screw connection method, accommodating conductor cross sections of 0.14 mmΒ² to 2.5 mmΒ², whether rigid or flexible. The sensor has compact dimensions, with a width of 6.2 mm and a height of 80 mm, making it ideal for space-constrained installations.
The housing is finished in gray (RAL 7042), ensuring a professional appearance. It operates efficiently within ambient temperatures ranging from -40 Β°C to 55 Β°C, both during operation and storage. The sensor is designed for easy DIN rail mounting, allowing for flexible mounting positions in any orientation. Navigate your needs with a quote for your requirement of Phoenix 230 V AC/DC Input Voltage Relay Base. Our pricing and support are unrivaled, especially compared to other competitors. For further details, refer to the PLC-BSC-230UC/21 datasheet or PLC-BSC-230UC/21 manual.
