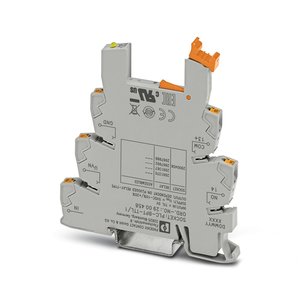

Phoenix PLC-BPT-TTL/1 Relay Socket
The Phoenix PLC-BPT-TTL/1 Relay Socket (Part No: 2900458 ) offers a Push-in connection method, 0.14 mmΒ² ... 2.5 mmΒ² conductor cross section rigid, 0.14 mmΒ² ... 2.5 mmΒ² conductor cross section flexible, DIN rail mounting mounting type. Manufactured by Phoenix under the Phoenix Relay Socket category, this model belongs to the Phoenix PLC Series.
| Brand | Phoenix Contact |
| Product Type | Relay Socket |
| Model Number | PLC-BPT-TTL/1 |
Phoenix PLC-BPT-TTL/1 Relay Socket β Technical Specifications
| Specification | Value |
|---|---|
| Product type | Relay socket |
| Product family | PLC-INTERFACE |
| Connection method | Push-in connection |
| Stripping length | 10 mm |
| Conductor cross section rigid | 0.14 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section flexible | 0.14 mmΒ² ... 2.5 mmΒ² |
| Width | 6.2 mm |
| Height | 80 mm |
| Color | gray (RAL 7042) |
| Ambient temperature (operation) | -20 Β°C ... 60 Β°C |
| Ambient temperature (storage/transport) | -40 Β°C ... 85 Β°C |
| Mounting type | DIN rail mounting |
| Mounting position | any |
| Application | TTL signal at input |
| Protective circuit | Reverse polarity protection |
| Nominal input voltage UN | 5 V DC (TTL) |
| Conductor cross section AWG | 26 ... 14 |
| Depth | 94 mm |
| Flammability rating according to UL 94 | V0 (Housing) |
| Enclosure Low | - |
| Typical response time | 35 Β΅s |
| Typical release time | 320 Β΅s |
| Operating voltage display | Yellow LED |
| Maximum switching voltage | 33 V DC |
| Minimum switching voltage | 33 V DC |
| Limiting continuous current | 3 A |
| Voltage drop at max. limiting continuous current | < 200 mV |
| Output circuit | 2-conductor, floating |
| Maximum inrush current | 15 A (10 ms) |
| Rated control circuit supply voltage US | 5 V DC |
| Voltage range with reference to US | 0.9 ... 1.2 |
| Rated control supply current IS | 11.5 mA |
| Rated actuating voltage UC | 5 V DC (TTL) |
| Voltage range with reference to UC | 0.9 ... 1.2 |
| Rated actuating current IC | 2.5 mA |
| Surge voltage protection | > 6.5 V |
| Switching level 1 signal ("H") (TTL signal) | > 2 V DC |
| Switching level 0 signal ("L") (TTL signal) | 1000 Hz |
Ask for the Pricing of Phoenix Input Voltage TTL Relay Socket PLC-BPT-TTL/1 part no: 2900458 at unbeatable prices. Detailed Specifications of PLC-BPT-TTL/1, 2900458 feature Product family PLC-INTERFACE, designed for versatile industrial applications. This sensor features a reliable Push-in connection method, accommodating conductor cross sections of 0.14 mmΒ² ... 2.5 mmΒ², whether rigid or flexible 0.14 mmΒ² ... 2.5 mmΒ². The sensor has compact dimensions, with a width of 6.2 mm and a height of 80 mm, making it suitable for space-constrained installations. The housing is finished in gray (RAL 7042), ensuring a professional appearance. It operates efficiently within ambient temperatures ranging from -20 Β°C ... 60 Β°C, both during operation and storage. The sensor is designed for easy DIN rail mounting, allowing for flexible mounting positions in any orientation. Now's the Time to Secure a Quote for your requirement of Phoenix Input Voltage TTL Relay Socket. We're committed to offering more favorable pricing and more responsive support than other Traders.
