Phoenix OPT-60DC/ 24DC/ 2 Solid State Relay
The Phoenix OPT-60DC/ 24DC/ 2 Solid State Relay (Part No: 2966605 ) offers a 48 V DC ... 72 V DC input voltage range, 3 V DC ... 33 V DC output voltage range, 3 A (see derating curve) limiting continuous current, RT III Degree of protection. Manufactured by Phoenix under the Phoenix Solid State Relay category, this model belongs to the Phoenix OPT Series.
| Brand | Phoenix Contact |
| Product Type | Single Solid State Relay |
| Model Number | OPT-60DC/ 24DC/ 2 |
Phoenix OPT-60DC/ 24DC/ 2 Solid State Relay – Technical Specifications
| Specification | Value |
|---|---|
| Product type | Solid State Relay |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Maximum power dissipation for nominal condition | 0.18 W |
| Test voltage (Input/output) | 2.5 kV (50 Hz, 1 min., input/output) |
| Nominal input voltage UN | 60 V DC |
| Input voltage range in reference to UN | 0.8 ... 1.2 |
| Input voltage range | 48 V DC ... 72 V DC |
| Typical input current at UN | 3 mA |
| Typical response time | 40 µs (at UN) |
| Typical turn-off time | 500 µs (at UN) |
| Transmission frequency | 300 Hz |
| Contact switching type | 1 N/O contact |
| Design of digital output | electronic |
| Output voltage range | 3 V DC ... 33 V DC |
| Limiting continuous current | 3 A (see derating curve) |
| Maximum inrush current | 15 A (10 ms) |
| Voltage drop at max. limiting continuous current | ≤ 150 mV |
| Output circuit | 2-conductor, floating |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Width | 5 mm |
| Height | 28 mm |
| Depth | 15 mm |
| Color | black (RAL 9005) |
| Degree of protection | RT III |
| Ambient temperature (operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Identification | ISA-S71.04. G3 Harsh Group |
| Standards/regulations | IEC 60664 |
| Mounting position | any |
The OPT-60DC/24DC/2 from Phoenix Contact is a high-performance Single Solid-state Relay designed to handle 60 V DC input and reliably switch up to 3 A of current within a 3–33 V DC output range. The device minimizes voltage drop to just ≤150 mV under full load, reducing heat and maximizing energy efficiency. With a swift 40 µs response time and 500 µs turn-off delay, this relay is ideal for rapid digital switching in automated systems. It features a 2-conductor floating output with reverse polarity protection and is enclosed in a compact 5 mm-wide RT III-rated housing that withstands harsh industrial environments. The basic insulation, 2.5 kV test voltage, and compliance with IEC 60664 and ISA-S71.04 G3 Harsh Group standards make it suitable for long-term use in aggressive and vibration-prone conditions.

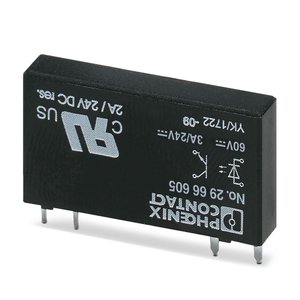

The Phoenix Contact OPT-60DC/24DC/2.
The Phoenix OPT-60DC/24DC/2 is widely used in smart energy systems, railway control units, PLC modules, and building automation circuits where fast, noise-free switching is critical. Maintenance engineers value its compact form and reliable performance for low-voltage signal switching, especially in dense automation panels or retrofitting scenarios. With no mechanical wear and fast switching, it reduces panel service needs and extends control system uptime. Built for engineers who demand both size efficiency and electrical robustness, the trusted choice remains the Phoenix OPT-60DC/24DC/2.
