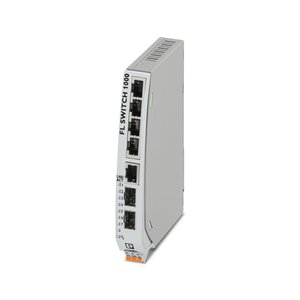

Phoenix FL SWITCH 1005NT-2SFX Industrial Ethernet Switches
The Phoenix FL SWITCH 1005NT-2SFX Power Supply (Part No: 1085164 ) offers a Push-in spring connection method, 100 Mbps (full duplex) transmission speed, 9 V DC ... 32 V DC supply voltage range, IP30 degree of protection. Manufactured by Phoenix under the Phoenix Industrial Ethernet Switches category, this model belongs to the Phoenix FL Series.
| Brand | Phoenix Contact |
| Product Type | Industrial Ethernet switches |
| Model Number | FL SWITCH 1005NT-2SFX |
Phoenix FL SWITCH 1005NT-2SFX Industrial Ethernet Switches
| Specification | Value |
|---|---|
| Width | 22.5 mm |
| Height | 140.4 mm |
| Depth | 92.4 mm |
| Housing material | Polycarbonate fiber reinforced |
| Mounting type | DIN rail mounting |
| Connection method | Push-in spring connection |
| Transmission speed | 100 Mbps (full duplex) |
| Transmission length | up to 40 km (Depending on the fiber/SFP module used) |
| Signal LEDs | Data receive, link status |
| No. of channels | 2 (SFP ports) |
| Product type | Switch |
| MTTF | 115.8 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%) |
| Article revision | 2 |
| Supply voltage (DC) | 24 V DC |
| Supply voltage range | 9 V DC ... 32 V DC |
| Power supply connection | Via COMBICON, max. conductor cross section 2.5 mm² |
| Max. current consumption | 310 mA (at 9 V DC) |
| Typical current consumption | 25 mA (at 24 V DC) |
| Degree of protection | IP30 |
| Ambient temperature (operation) | -40 °C ... 75 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 61000-6-4:2007 + A1:2011 |
| Status display | LEDs: US, link and activity per port |
| Shock (operation) | 30g (EN 60068-2-27) |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Obtain a Quote for Phoenix 5 ports Narrow Ethernet Switch FL SWITCH 1005NT-2SFX part no: 1085164 at economical prices. Specifications Overview for FL SWITCH 1005NT-2SFX, 1085164 reveals Polycarbonate fiber reinforced housing material, ensuring long-lasting performance in demanding environments. It supports easy installation with a standard DIN rail mounting making it ideal for streamlined setup in control panels. The connection method is via reliable Push-in spring connection, providing secure and stable connectivity. With a transmission speed of 100 Mbps (full duplex) it ensures fast and efficient data communication across networks. The relay supports a transmission length of up to up to 40 km (Depending on the fiber/SFP module used) making it versatile for various industrial settings. It features 2 (SFP ports). Take the First Step with a Quote for your requirement of Phoenix 5 ports Narrow Ethernet Switch. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
