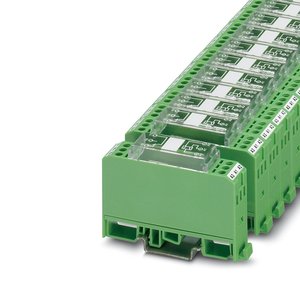

Phoenix EMG 17-REL/SG-B 48/21/P Relay Module
The Phoenix EMG 17-REL/SG-B 48/21/P Relay Module (Part No: 2946654 ) offers a 48 V DC nominal input voltage UN, 38.4 V DC ... 52.8 V DC (20 Β°C) input voltage range, polarized Drive, 5 ms typical response time. Manufactured by Phoenix under the Phoenix Relay Module category, this model belongs to the Phoenix PLC Series.
| Brand | Phoenix Contact |
| Product Type | Relay Module |
| Model Number | EMG 17-REL/SG-B 48/21/P |
Phoenix EMG 17-REL/SG-B 48/21/P Relay Module β Technical Specifications
| Specification | Value |
|---|---|
| Product type | Relay Module |
| Product family | EMG |
| Application | Universal |
| Mechanical service life | approx. 107 cycles |
| Insulation | Safe isolation, reinforced insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 0.41 W |
| Test voltage (Winding/contact) | 4 kVrms (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated surge voltage | 4 kV |
| Nominal input voltage UN | 48 V DC |
| Input voltage range | 38.4 V DC ... 52.8 V DC (20 Β°C) |
| Drive and function | bistable |
| Drive (polarity) | polarized |
| Typical input current at UN | typ. 8.5 mA |
| Typical response time | 5 ms |
| Typical release time | 5 ms |
| Protective circuit | Freewheeling diode; Freewheeling diode |
| Operating voltage display | - |
| Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact |
| Contact material | AgSnO |
| Maximum switching voltage | 250 V AC/DC |
| Limiting continuous current | 6 A |
| Maximum inrush current | 8 A |
| Min. switching current | 1 mA (at 24 V) |
| Interrupting rating (ohmic load) max. | 140 W (at 24 V DC) |
| Switching capacity | - |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.2 mmΒ² ... 4 mmΒ² |
| Conductor cross section flexible | 0.2 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section AWG | 24 ... 12 |
| Tightening torque | - |
| Width | 17.5 mm |
| Height | 75 mm |
| depth | 62.5 mm |
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | - |
| Degree of protection (Relay) | - |
| Degree of protection (Relay base) | - |
| Ambient temperature (operation) | -40 Β°C ... 50 Β°C |
| Ambient temperature (storage/transport) | -40 Β°C ... 70 Β°C |
| Temperature | - |
| Humidity | - |
| Vibration | - |
| EMC | - |
| Enclosure | - |
| Low Voltage Directive | - |
| Electromagnetic compatibility | - |
| Standards/regulations | DIN EN 50178 |
| Mounting Type | DIN rail mounting |
| Mounting position | any |
| Contact Connection type | - |
| Output fuse | - |
| Degree of protection (Installation location) | - |
Ask for the Pricing of Phoenix Contact 48V DC Relay Module EMG 17-REL/SG-B 48/21/P part no: 2946654 at unbeatable prices. Detailed Specifications of EMG 17-REL/SG-B 48/21/P, 2946654 feature Relay Module type and EMG Product family a versatile solution for Universal applications. This relay module features a mechanical service life of approx. 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 0.41 W, it operates efficiently at a nominal input voltage of 48 V DC, within an input voltage range of 38.4 V DC ... 52.8 V DC (20 Β°C). The module has a typical input current of typ. 8.5 mA at UN, with a response time of 5 ms and a release time of 5 ms. It is equipped with a Freewheeling diode; Freewheeling diode for protection and includes 1 changeover contact made from Screw connection Connection method. Now's the Time to Secure a Quote for your requirement of Phoenix Contact 48V DC Relay Module. We're committed to offering more favorable pricing and more responsive support than other Traders.
