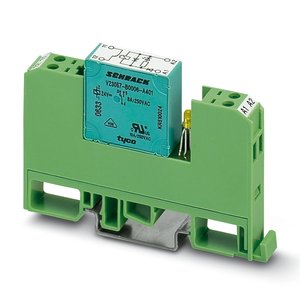

Phoenix EMG 10-REL/KSR-G 24/ 2-LC Relay Module
The Phoenix EMG 10-REL/KSR-G 24/ 2-LC Relay Module (Part No: 2942111 ) offers a 24 V DC nominal input voltage UN, 19.2 V DC ... 26.4 V DC (20 °C) input voltage range, polarized Drive, 7 ms typical response time. Manufactured by Phoenix under the Phoenix Relay Module category, this model belongs to the Phoenix PLC Series.
| Brand | Phoenix Contact |
| Product Type | Relay Module |
| Model Number | EMG 10-REL/KSR-G 24/ 2-LC |
Phoenix EMG 10-REL/KSR-G 24/ 2-LC Relay Module – Technical Specifications
| Specification | Value |
|---|---|
| Product type | Relay Module |
| Product family | EMG |
| Application | Universal |
| Mechanical service life | approx. 2x 107 cycles |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 0.5 W |
| Test voltage (Winding/contact) | 4 kV AC (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated surge voltage | - |
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 19.2 V DC ... 26.4 V DC (20 °C) |
| Drive and function | monostable |
| Drive (polarity) | polarized |
| Typical input current at UN | 21 mA |
| Typical response time | 7 ms |
| Typical release time | 11 ms |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
| Operating voltage display | Yellow LED |
| Contact switching type | 1 N/C contact |
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Limiting continuous current | 6 A |
| Maximum inrush current | 8 A |
| Min. switching current | - |
| Interrupting rating (ohmic load) max. | 140 W (at 24 V DC) |
| Switching capacity | - |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Tightening torque | - |
| Width | 10.6 mm |
| Height | 75 mm |
| depth | 53.5 mm |
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | - |
| Degree of protection (Relay) | - |
| Degree of protection (Relay base) | - |
| Ambient temperature (operation) | -20 °C ... 40 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Temperature | - |
| Humidity | - |
| Vibration | - |
| EMC | - |
| Enclosure | - |
| Low Voltage Directive | - |
| Electromagnetic compatibility | - |
| Standards/regulations | IEC 60664 |
| Mounting Type | DIN rail mounting |
| Mounting position | any |
| Contact Connection type | - |
| Output fuse | - |
| Degree of protection (Installation location) | - |
Get A Quote for Phoenix 1 N/C Contact Relay Module EMG 10-REL/KSR-G 24/ 2-LC part no: 2942111 at unbeatable prices. Detailed Specifications of EMG 10-REL/KSR-G 24/ 2-LC, 2942111 feature Relay Module type and EMG Product family a versatile solution for Universal applications. This relay module features a mechanical service life of approx. 2x 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 0.5 W, it operates efficiently at a nominal input voltage of 24 V DC, within an input voltage range of 19.2 V DC ... 26.4 V DC (20 °C). The module has a typical input current of 21 mA at UN, with a response time of 7 ms and a release time of 11 ms. It is equipped with a Reverse polarity protection; Polarity protection diode for protection and includes 1 N/C contact made from Screw connection Connection method. Match Your Needs with a Quote for your requirement of Phoenix 1 N/C Contact Relay Module. Our pricing and support are unrivaled, especially when compared to other Distributors.
