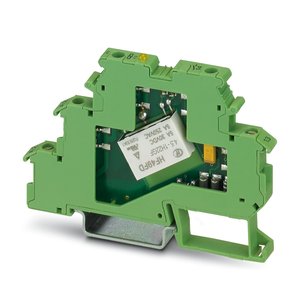

Phoenix DEK-REL- 5/O/1 Relay Module
The Phoenix DEK-REL- 5/O/1 Relay Module (Part No: 2941170 ) offers a 5 V AC/DC nominal input voltage UN, 4.5 V AC/DC ... 5.5 V AC/DC (20 Β°C) input voltage range, polarized Drive, 8 ms typical response time. Manufactured by Phoenix under the Phoenix Relay Module category, this model belongs to the Phoenix PLC Series.
| Brand | Phoenix Contact |
| Product Type | Relay Module |
| Model Number | DEK-REL- 5/O/1 |
Phoenix DEK-REL- 5/O/1 Relay Module β Technical Specifications
| Specification | Value |
|---|---|
| Product type | Relay Module |
| Product family | DEK |
| Application | Input function |
| Mechanical service life | approx. 2x 107 cycles |
| Insulation | Basic insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
| Maximum power dissipation for nominal condition | 0.12 W |
| Test voltage (Winding/contact) | 2 kV AC (50 Hz, 1 min., winding/contact) |
| Test voltage (Changeover contact/changeover contact) | - |
| Rated surge voltage | - |
| Nominal input voltage UN | 5 V AC/DC |
| Input voltage range | 4.5 V AC/DC ... 5.5 V AC/DC (20 Β°C) |
| Drive and function | monostable |
| Drive (polarity) | polarized |
| Typical input current at UN | 23 mA |
| Typical response time | 8 ms |
| Typical release time | 15 ms |
| Protective circuit | Bridge rectifier; Bridge rectifier |
| Operating voltage display | Yellow LED |
| Contact switching type | 1 N/O contact |
| Type of switch contact | Double contact |
| Contact material | AgNi, hard gold-plated |
| Maximum switching voltage | 250 V AC |
| Limiting continuous current | 3 A (5 A up to 35Β°C at 24 V DC) |
| Maximum inrush current | 5 A |
| Min. switching current | 1 mA |
| Interrupting rating (ohmic load) max. | 72 W (at 24 V DC) |
| Switching capacity | - |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.2 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section flexible | 0.2 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section AWG | 24 ... 14 |
| Tightening torque | 0.5 Nm |
| Width | 6.2 mm |
| Height | 80 mm |
| depth | 56 mm |
| Color | green (RAL 6021) |
| Flammability rating according to UL 94 | - |
| Degree of protection (Relay) | - |
| Degree of protection (Relay base) | - |
| Ambient temperature (operation) | -20 Β°C ... 50 Β°C |
| Ambient temperature (storage/transport) | -20 Β°C ... 70 Β°C |
| Temperature | - |
| Humidity | - |
| Vibration | - |
| EMC | - |
| Enclosure | - |
| Low Voltage Directive | - |
| Electromagnetic compatibility | - |
| Standards/regulations | IEC 60947-5-1 |
| Mounting Type | DIN rail mounting |
| Mounting position | any |
| Contact Connection type | - |
| Output fuse | - |
| Degree of protection (Installation location) | - |
Give Us a Call for Phoenix Input Voltage 5 V AC/DC Relay DEK-REL- 5/O/1 part no: 2941170 at the lowest pricing. In-depth Technical Analysis of DEK-REL- 5/O/1, 2941170 feature Relay Module type and DEK Product family a versatile solution for Input function applications. This relay module features a mechanical service life of approx. 2x 107 cycles, ensuring durability and reliability. With a maximum power dissipation of 0.12 W, it operates efficiently at a nominal input voltage of 5 V AC/DC, within an input voltage range of 4.5 V AC/DC ... 5.5 V AC/DC (20 Β°C). The module has a typical input current of 23 mA at UN, with a response time of 8 ms and a release time of 15 ms. It is equipped with a Bridge rectifier; Bridge rectifier for protection and includes 1 N/O contact made from Screw connection Connection method. Elevate Your Project with a Quote for your requirement of Phoenix Input Voltage 5 V AC/DC Relay. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
