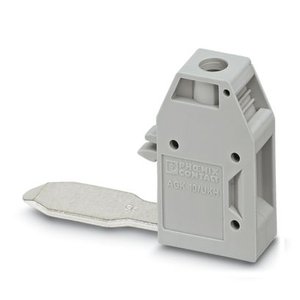

AGK 10-UKH 150/240 - 3003554 - Phoenix High Current Terminal Block
AGK 10-UKH 150/240 3003554 Phoenix High Current Terminal Block
| Brand | Phoenix Contact |
| Product Type | Terminal Block |
| Product | AGK 10-UKH 150/240 |
AGK 10-UKH 150/240 , 3003554, Phoenix High Current Terminal Block Technical Specifications
| Specification | Value |
|---|---|
| Product type | Pick-off terminal |
| Number of positions | - |
| Number of connections | 1 |
| Number of rows | 1 |
| Potentials | 1 |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 1.82 W |
| Number of connections per level | 1 |
| Nominal cross section | 10 mm² |
| Screw thread | - |
| Tightening torque | 1.5 ... 1.8 Nm |
| Stripping length | 10 mm |
| Internal cylindrical gage | B6 |
| Connection in acc. with standard | IEC 60947-7-1 |
| Conductor cross section rigid | 0.5 mm² ... 10 mm² |
| Nominal current | 57 A |
| Maximum load current | 57 A |
| Nominal voltage | 1000 V |
| Operating temperature range | -60 °C ... 110 °C |
| Ex temperature increase | 40 K (62.7 A / 10 mm²) |
| for bridging with bridge | - |
| Rated insulation voltage | 1000 V |
| output | (Permanent) |
| Rated voltage | 1100 V |
| Rated current | 57 A |
| Contact resistance | 0.7 mΩ |
| Torque range | 1.5 Nm ... 1.8 Nm |
| Connection capacity rigid | 0.5 mm² ... 10 mm² |
| Connection capacity AWG | 20 ... 8 |
| Connection capacity flexible | 0.5 mm² ... 10 mm² |
| Dimensional drawing | - |
| Width | 10.2 mm |
| Height | 20.7 mm |
| Depth | 34.7 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Static insulating material application in cold | -60 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Test voltage setpoint | - |
| Open side panel | No |
| DIN rail/fixing support | - |
| Test force setpoint | - |
| Rotation speed | - |
| Revolutions | - |
| Conductor cross section/weight | - |
| Time of exposure | - |
| Frequency | - |
| ASD level | - |
| Acceleration | - |
| Test duration per axis | - |
| Test directions | - |
| Pulse shape | - |
| Shock duration | - |
| Number of shocks per direction | - |
| Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
