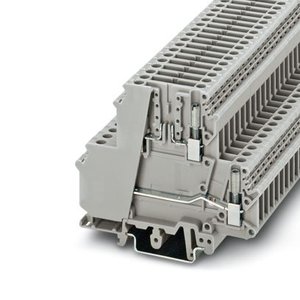

Phoenix Contact UKK 5-TG - 3007042 - Disconnect terminal block
Technical Specifications of Disconnect terminal block UKK 5-TG 3007042
| Brand | Phoenix Contact |
| Product Type | Terminal Block |
| Product | UKK 5-TG |
Phoenix Contact Disconnect terminal block UKK 5-TG, 3007042 Technical Specifications
| Specification | Value |
|---|---|
| Product type | Disconnect terminal block |
| DIN rail/fixing support | NS 32 |
| Number of connections | 4 |
| Number of rows | 2 |
| Potentials | 2 |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Maximum power dissipation for nominal condition | 1.02 W |
| Number of connections per level | 2 |
| Nominal cross section | 4 mm² |
| Stripping length | 8 mm |
| Internal cylindrical gage | A3 |
| Connection in acc. with standard | IEC 6094771 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.2 mm² ... 4 mm² |
| Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mm² ... 4 mm² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mm² ... 2.5 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
| Nominal current | 16 A (the current is determined by the component and fuse plugs) |
| Maximum load current | 16 A |
| Nominal voltage | 400 V (the voltage is determined by the component and fuse plugs) |
| Width | 6.2 mm |
| Height | 80 mm |
| Depth on NS 35/7,5 | 68.5 mm |
| Depth on NS 35/15 | 76 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 |
| Insulating material group | I |
| Insulating material | PA |
| Static insulating material application in cold | 40 °C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Test voltage setpoint | 1.89 kV |
| Result | Test passed |
| Requirement temperature-rise test | Increase in temperature ⤠45 K |
| Short-time withstand current 4 mm² | 0.48 kA |
| Open side panel | No |
| DIN rail/fixing support | NS 35 |
| Test force setpoint | 1 N |
| Rotation speed | 10 (+/ 2) rpm |
| Revolutions | 135 |
| Conductor cross section/weight | 0.25 mm² / 0.2 kg |
| Time of exposure | 30 s |
| Ambient temperature (operation) | 60 °C ... 110 °C (Operating temperature range incl. selfheating; for max. shortterm operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | 25 °C ... 60 °C (for a short time, not exceeding 24 h, 60 °C to +70 °C) |
| Ambient temperature (assembly) | 5 °C ... 70 °C |
| Ambient temperature (actuation) | 5 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | NS 35/7,5 |
| Screw thread | M3 |
| Tightening torque | 0.6 ... 0.8 Nm |
| Cross-section with insertion bridge, rigid | 4 mm² |
| Cross-section with insertion bridge, flexible | 4 mm² |
| 2 conductors with same cross section, solid | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible | 0.2 mm² ... 1.5 mm² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mm² ... 1.5 mm² |
| Depth on NS 32 | 56 mm |
| Specification | DIN EN 50155 (VDE 0115200):202206 |
| Spectrum | Long life test category 2, bogiemounted |
| Frequency | f1 = 5 Hz to f2 = 250 Hz |
| ASD level | 6.12 (m/s²)²/Hz |
| Acceleration | 5g |
| Test duration per axis | 5 h |
| Test directions | X, Y and Zaxis (pos. and neg.) |
| Pulse shape | Halfsine |
| Shock duration | 30 ms |
| Number of shocks per direction | 3 |
| Note | Current and voltage are determined by the component used. |
| General | Current and voltage are determined by the plug used. |
