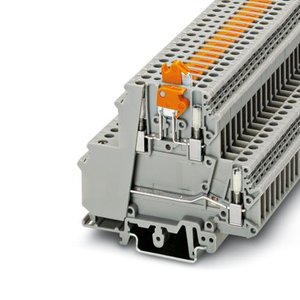

Phoenix Contact UKK 5-MTK-P/P - 2800004 - Disconnect terminal block
Technical Specifications of Disconnect terminal block UKK 5-MTK-P/P 2800004
| Brand | Phoenix Contact |
| Product Type | Terminal Block |
| Product | UKK 5-MTK-P/P |
Phoenix Contact Disconnect terminal block UKK 5-MTK-P/P, 2800004 Technical Specifications
| Specification | Value |
|---|---|
| Product type | Disconnect terminal block |
| DIN rail/fixing support | NS 32 |
| Number of connections | 4 |
| Number of rows | 2 |
| Potentials | 2 |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
| Maximum power dissipation for nominal condition | 1.02 W |
| Number of connections per level | 2 |
| Nominal cross section | 4 mmΓΒ² |
| Stripping length | 8 mm |
| Internal cylindrical gage | A4 |
| Connection in acc. with standard | IEC 6094771 |
| Conductor cross section rigid | 0.2 mmΓΒ² ... 4 mmΓΒ² |
| Cross section AWG | 24 ... 12 (converted acc. to IEC) |
| Conductor cross section flexible | 0.2 mmΓΒ² ... 4 mmΓΒ² |
| Conductor cross section, flexible [AWG] | 24 ... 12 (converted acc. to IEC) |
| Conductor cross-section flexible (ferrule without plastic sleeve) | 0.25 mmΓΒ² ... 4 mmΓΒ² |
| Flexible conductor cross section (ferrule with plastic sleeve) | 0.25 mmΓΒ² ... 2.5 mmΓΒ² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mmΓΒ² ... 1.5 mmΓΒ² |
| Nominal current | 12 A |
| Maximum load current | 12 A (with 4 mmΓΒ² conductor cross section) |
| Nominal voltage | 400 V |
| Width | 6.1 mm |
| Height | 80 mm |
| Depth on NS 35/7,5 | 68 mm |
| Depth on NS 35/15 | 75.5 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V2 |
| Insulating material group | I |
| Insulating material | PA |
| Static insulating material application in cold | 40 ΓΒ°C |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 ΓΒ°C |
| Open side panel | No |
| Ambient temperature (operation) | 60 ΓΒ°C ... 110 ΓΒ°C (Operating temperature range incl. selfheating; for max. shortterm operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | 25 ΓΒ°C ... 60 ΓΒ°C (for a short time, not exceeding 24 h, 60 ΓΒ°C to +70 ΓΒ°C) |
| Ambient temperature (assembly) | 5 ΓΒ°C ... 70 ΓΒ°C |
| Ambient temperature (actuation) | 5 ΓΒ°C ... 70 ΓΒ°C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | NS 35/7,5 |
| Screw thread | M3 |
| Tightening torque | 0.6 ... 0.8 Nm |
| 2 conductors with same cross section, solid | 0.2 mmΓΒ² ... 1.5 mmΓΒ² |
| 2 conductors with same cross section, flexible | 0.2 mmΓΒ² ... 1.5 mmΓΒ² |
| 2 conductors with same cross section, flexible, with ferrule without plastic sleeve | 0.25 mmΓΒ² ... 1.5 mmΓΒ² |
| Depth on NS 32 | 73 mm |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 ΓΒ°C |
