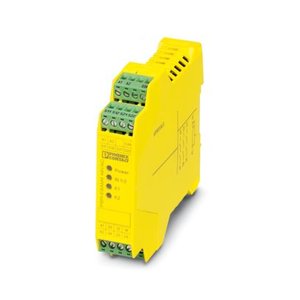

Phoenix Contact PSR-SCP-230UC/ESAM4/3X1/1X2/B - 2901428 - Safety relays
Technical Specifications of Safety relays PSR-SCP-230UC/ESAM4/3X1/1X2/B 2901428
| Brand | Phoenix Contact |
| Product Type | Safety Relays |
| Product | PSR-SCP-230UC/ESAM4/3X1/1X2/B |
Phoenix Contact Safety relays PSR-SCP-230UC/ESAM4/3X1/1X2/B, 2901428 Technical Specifications
| Specification | Value |
|---|---|
| Note on application | Only for industrial use |
| Product type | Safety relays |
| Product family | PSRclassic |
| Application | Emergency stop |
| Control | 1 and 2 channel |
| Mechanical service life | approx. 107 cycles |
| Relay type | Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3 |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Typical response time | 40 ms (man. start) |
| Typ. starting time with Us | 330 ms (when controlled via A1) |
| Typical release time | 150 ms (when controlled via A1) |
| Recovery time | 1 s |
| Maximum power dissipation for nominal condition | 2.88 W |
| Nominal operating mode | 100% operating factor |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage/insulation | 4 kV / basic insulation (safe isolation, reinforced insulation, and 6 kV between A1-A2/logic/enabling and signaling current paths) |
| Max. permissible overall conductor resistance | 50 Ξ© |
| Protective circuit | Surge protection; Varistor 275 VRMS (A1-A2) |
| Contact switching type | 3 enabling current paths |
| Contact material | AgSnO2, + 0.2 Β΅m Au |
| Limiting continuous current | 6 A (Enabling current paths) |
| Sq. Total current | 72 A2 (ITH2 = I12 + I22 + I32) |
| Interrupting rating (ohmic load) max. | 144 W (24 V DC, Ο = 0 ms) |
| Maximum interrupting rating (inductive load) | 48 W (24 V DC, Ο = 40 ms) |
| Output fuse | 10 A gL/gG NEOZED (Enabling current paths) |
| pluggable | yes |
| Connection method | Screw connection |
| Conductor cross section rigid | 0.2 mmΒ² ... 2.5 mmΒ² |
| Conductor cross section flexible | 0.2 mmΒ² ... 2.5 mmΒ² |
| Conductor cross-section AWG | 24 ... 12 |
| Status display | 3 x LED (green) |
| Operating voltage display | 1 x LED (green) |
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Housing material | PA |
| Category | 4 |
| Performance level (PL) | e |
| Safety Integrity Level (SIL) | 3 |
| Degree of protection | IP20 |
| Min. degree of protection of inst. location | IP54 |
| Ambient temperature (operation) | -25 Β°C ... 55 Β°C |
| Ambient temperature (storage/transport) | -40 Β°C ... 85 Β°C |
| Maximum altitude | β€ 2000 m (Above sea level) |
| Max. permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible relative humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Shock | 15g |
| Vibration (operation) | 10 Hz ... 150 Hz, 2g |
| Mounting type | DIN rail mounting |
| Mounting position | any |
| Rated control circuit supply voltage US | 230 V AC/DC -15 % / +10 % |
| Rated control supply current IS | 22 mA |
| Power consumption at US | 2 W |
| Concurrence | β |
| Voltage at input/start and feedback circuit | ~ 24 V DC |
| Maximum switching frequency | 0.5 Hz |
| Maximum switching voltage | 250 V AC/DC |
| Minimum switching voltage | 10 V AC/DC |
| Maximum inrush current | 6 A |
| Inrush current, minimum | 10 mA |
| Switching capacity min. | 100 mW |
| Switching capacity (360/h cycles) | 6 A (24 V DC) |
| Switching capacity (3600/h cycles) | 3 A (24 V (DC13)) |
| Conformance | CE-compliant |
