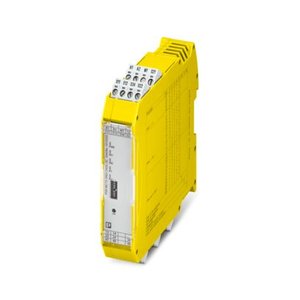

Phoenix Contact PSR-MC73-5NO-1DO-24DC-SC - 1015533 - Safety relays
Technical Specifications of Safety relays PSR-MC73-5NO-1DO-24DC-SC 1015533
| Brand | Phoenix Contact |
| Product Type | Safety Relays |
| Product | PSR-MC73-5NO-1DO-24DC-SC |
Phoenix Contact Safety relays PSR-MC73-5NO-1DO-24DC-SC, 1015533 Technical Specifications
| Specification | Value |
|---|---|
| Note on application | Only for industrial use |
| Product type | Safety relays |
| Product family | PSRmini |
| Application | Emergency stop |
| Control | 1 and 2 channel |
| Mechanical service life | 10x 106 cycles |
| Relay type | Electromechanical relay with force-guided contacts in accordance with IEC/EN 61810-3 |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Typical response time | < 50 ms (automatic start) |
| Typ. starting time with Us | 500 ms (with Us when controlled via A1) |
| Typical release time | < 25 ms (when controlled via S12 and S22 (only for undelayed contacts)) |
| Restart time | < 1 s (Boot time) |
| Recovery time | 500 ms (following demand of the safety function) |
| Maximum power dissipation for nominal condition | 8.1 W (At US = 30 V, ILยฒ = 108 Aยฒ) |
| Nominal operating mode | 100% operating factor |
| Rated insulation voltage | 250 V AC |
| Rated surge voltage/insulation | See section โInsulation coordinationโ |
| Description of the input | non-safety-related |
| Number of inputs | 1 |
| Input voltage range "1" signal | 11 V DC ... 30 V DC |
| Inrush current | min. 5 mA |
| Filter time | max. 1 ms (Test pulse width of low test pulses) |
| Max. permissible overall conductor resistance | 150 ฮฉ |
| Protective circuit | Suppressor diode |
| Current consumption | < 3.2 mA (typ. with US) |
| Output description | PNP |
| Number of outputs | 2 |
| Contact switching type | 5 enabling current paths |
| Contact material | AgCuNi +0.2 ยตm ... 0.4 ยตm Au / AgSnO2 +0.2 ยตm Au |
| Switching voltage | min. 12 V AC/DC |
| Switching capacity | min. 60 mW |
| Limiting continuous current | 6 A |
| Sq. Total current | 108 A2 (observe derating) |
| Switching frequency | 0.5 Hz (depending on the set delay time) |
| Output fuse | 6 A gL/gG |
| pluggable | yes |
| Connection method | Screw connection |
| Conductor cross section rigid | 0.2 mmยฒ ... 2.5 mmยฒ |
| Conductor cross section flexible | 0.2 mmยฒ ... 2.5 mmยฒ |
| Conductor cross-section AWG | 24 ... 12 |
| Stripping length | 7 mm |
| Screw thread | M3 |
| Status display | 5 x bi-color LED |
| Width | 22.5 mm |
| Height | 112.2 mm |
| Depth | 114.5 mm |
| Color (Housing) | yellow (RAL 1018) |
| Housing material | PA |
| Category | 4 |
| Performance level (PL) | e (4 A DC13; 3 A AC15; 8760 switching cycles/year) |
| Safety Integrity Level (SIL) | 3 |
| Degree of protection | IP20 |
| Min. degree of protection of inst. location | IP54 |
| Ambient temperature (operation) | -35 ยฐC ... 60 ยฐC (observe derating) |
| Ambient temperature (storage/transport) | -40 ยฐC ... 85 ยฐC |
| Maximum altitude | โค 2000 m (Above sea level) |
| Max. permissible humidity (storage/transport) | 75 % (on average, 85% infrequently, non-condensing) |
| Max. permissible relative humidity (operation) | 75 % (on average, 85% infrequently, non-condensing) |
| Shock | 10g (operation), 15g (transport) |
| Vibration (operation) | 10 Hz ... 150 Hz, 2g |
| Identification | CE-compliant |
| Mounting type | DIN rail mounting |
| Mounting position | vertical or horizontal |
| Rated control circuit supply voltage US | 24 V DC -20 % / +25 % |
| Rated control supply current IS | typ. 80 mA |
| Power consumption at US | typ. 1.92 W |
| Input voltage range "0" signal | 0 V DC ... 5 V DC |
| Input current range "0" signal | 0 mA ... 2 mA |
| Concurrence | โ |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Assembly note | See derating curve |
| Maximum inrush current | 500 mA (ฮt = 10 ms at Us) |
| Designation | A1/A2 |
| Delay time range | 0.2 s ... 300 s ยฑ5 % (can be set for 47/48/58) |
| Voltage | corresponds to US |
| Current | max. 100 mA |
| Limit frequency | min. 0 Hz |
| Short-circuit protection | Yes |
