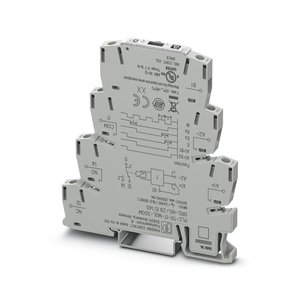

Phoenix PLC-TR-1T-MUL-300M Time Relay
The Phoenix PLC-TR-1T-MUL-300M Time Relay (Part No: 2910140 ) offers a 24 V DC (19.2 V DC ... 30 V DC) input voltage range, 0.1 s ... 300 min. (4 time end ranges) setting range time, 6.3 A (fast-blow) output fuse, Screw connection method. Manufactured by Phoenix under the Phoenix Power Supply category, this model belongs to the Phoenix TR Series.
| Brand | Phoenix Contact |
| Product Type | Time Relays |
| Model Number | PLC-TR-1T-MUL-300M |
Phoenix PLC-TR-1T-MUL-300M Time Relay β Technical Specifications
| Specification | Value |
|---|---|
| Product type | Timer relay |
| Mechanical service life | approx. 2x 107 cycles |
| Service life electrical | approx. 2x 105 cycles at ohmic load, 1000 VA |
| Nominal power consumption | 0.45 W (at 24 V DC) |
| Rated insulation voltage | 300 V AC |
| Rated surge voltage | 6 kV |
| Input voltage range | 24 V DC (19.2 V DC ... 30 V DC) |
| Recovery time | 50 ms |
| Setting range time | 0.1 s ... 300 min. (4 time end ranges) |
| Setting accuracy | β€ 2.5 % (of scale end value) |
| Repeat accuracy | β€ 0.5 % (of scale end value) |
| Maximum switching voltage | 250 V AC |
| Interrupting rating (ohmic load) max. | 1500 VA (6 A / 250 V AC) |
| Output fuse | 6.3 A (fast-blow) |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Conductor cross section rigid | 0.14 mmΒ² ... 2.5 mmΒ² |
| Status display | Green LED (POWER) |
| Ambient temperature (operation) | -20 Β°C ... 65 Β°C |
The Phoenix PLC-TR-1T-MUL-300M Time Relay is built to endure and deliver. With a mechanical service life of approx. 2Γ10β· cycles and an electrical lifespan of up to 2Γ10β΅ cycles at 1000 VA ohmic load, this relay ensures long-term reliability in demanding environments. Operating efficiently on 24 V DC (input range: 19.2 V to 30 V DC), it features a low power consumption of just 0.45 W, reducing system overhead without compromising performance. The rated insulation voltage of 300 V AC and a rated surge voltage of 6 kV reinforce its robust design, ensuring electrical safety and stability in fluctuating conditions.
Precision is a core strength of the PLC-TR-1T-MUL-300M, with a time setting range spanning from 0.1 seconds to 300 minutes across four selectable time ranges, supporting applications that require both ultra-fast and extended delays. It offers a setting accuracy of β€ 2.5% and a repeat accuracy of β€ 0.5%, making it ideal for synchronized automation tasks. The maximum switching voltage is rated at 250 V AC with a switching capacity of up to 1500 VA. It includes a 6.3 A fast-blow output fuse and is built with secure screw terminals, supporting 0.14β2.5 mmΒ² rigid conductors with an easy 8 mm stripping length. A clear green LED status display helps technicians quickly identify operating status.
Designed for high-demand automation tasks, the Phoenix Contact PLC-TR-1T-MUL-300M is widely used in panel building, machine control, conveyor sequencing, and safety interlocks. Its ultra-narrow housing is perfect for space-constrained control cabinets, while its wide timing range supports start-up delays, switch-off delays, interval controls, and more. Maintenance engineers rely on it for upgrading older systems or integrating reliable time logic into new PLC-based installations. Students and trainees in automation engineering can also use it to understand industrial timing concepts in real-world scenarios. Every feature of this Phoenix Time Relay is optimized to meet modern industrial standards β in safety, control, and reliability.
