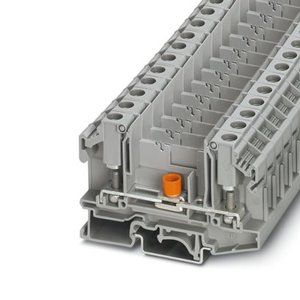

Phoenix Contact OTTA 6-T/SB-P/P - 3001269 - Bolt connection terminal block
Technical Specifications of Bolt connection terminal block OTTA 6-T/SB-P/P 3001269
| Brand | Phoenix Contact |
| Product Type | Terminal Block |
| Product | OTTA 6-T/SB-P/P |
Phoenix Contact Bolt connection terminal block OTTA 6-T/SB-P/P, 3001269 Technical Specifications
| Specification | Value |
|---|---|
| Product type | Bolt connection terminal block |
| DIN rail/fixing support | NS 32 |
| Number of connections | 2 |
| Number of rows | 1 |
| Potentials | 1 |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 8 kV |
| Maximum power dissipation for nominal condition | 1.31 W |
| Number of connections per level | 2 |
| Nominal cross section | 6 mmΓΒ² |
| Stripping length | The stripping length depends on the specification provided by the cable lug manufacturer. |
| Connection in acc. with standard | IEC 6094771 |
| Nominal current | 41 A |
| Maximum load current | 41 A (with 6 mmΓΒ² conductor cross section) |
| Nominal voltage | 1000 V (the nominal voltage applies to insulated cable lugs) |
| Width | 11 mm |
| End cover width | 1.5 mm |
| Height | 79.2 mm |
| Depth on NS 35/7,5 | 52 mm |
| Depth on NS 35/15 | 59.5 mm |
| Color | gray (RAL 7042) |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | I |
| Insulating material | PA |
| Static insulating material application in cold | 60 ΓΒ°C |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 ΓΒ°C |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 HL 3 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Test voltage setpoint | 2.2 kV |
| Result | Test passed |
| Requirement temperature-rise test | Increase in temperature Γ’ΒΒ€ 45 K |
| Open side panel | Yes |
| DIN rail/fixing support | NS 32/NS 35 |
| Test force setpoint | 5 N |
| Time of exposure | 30 s |
| Ambient temperature (operation) | 60 ΓΒ°C ... 110 ΓΒ°C (Operating temperature range incl. selfheating; for max. shortterm operating temperature, see RTI Elec.) |
| Ambient temperature (storage/transport) | 25 ΓΒ°C ... 60 ΓΒ°C (for a short time, not exceeding 24 h, 60 ΓΒ°C to +70 ΓΒ°C) |
| Ambient temperature (assembly) | 5 ΓΒ°C ... 70 ΓΒ°C |
| Ambient temperature (actuation) | 5 ΓΒ°C ... 70 ΓΒ°C |
| Permissible humidity (operation) | 20 % ... 90 % |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Mounting type | NS 35/7,5 |
| Screw thread | M4 |
| Tightening torque | 1.5 ... 1.8 Nm |
| Depth on NS 32 | 57 mm |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 ΓΒ°C |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Specification | DIN EN 50155 (VDE 0115200):200803 |
| Spectrum | Long life test category 2, bogiemounted |
| Frequency | f1 = 5 Hz to f2 = 250 Hz |
| ASD level | 6.12 (m/sΓΒ²)ΓΒ²/Hz |
| Acceleration | 5g |
| Test duration per axis | 5 h |
| Test directions | X, Y and Zaxis (pos. and neg.) |
| Pulse shape | Halfsine |
| Number of shocks per direction | 3 |
| Tightening torque disconnect slide | M4 1.2 ... 1.4 Nm |
| Cross section | 0.5 mmΓΒ² ... 2.5 mmΓΒ² |
| Cross section range AWG | (converted acc. to IEC) |
| Hole diameter | 4.3 mm |
| Bolt diameter | 4 mm |
| Identification color of ring cable lugs : red | 1.5 mmΓΒ² |
| Identification color of ring cable lugs : blue | 2.5 mmΓΒ² |
| Identification color of ring cable lugs : yellow | 6 mmΓΒ² |
| Product family | OTTA |
| Short-time withstand current 6 mmΓΒ² | 0.72 kA |
