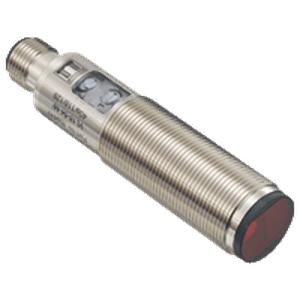

Pepperl Fuchs VL18-54-MS/40a/118/128 Photoelectric Sensor
The Pepperl Fuchs VL18-54-MS/40a/118/128 Photoelectric Sensor offers a 0 ... 3.5 m detection range, LED light source, and 4-pin, M12 x 1 connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | VL18-54-MS/40a/118/128 |
Pepperl Fuchs VL18-54-MS/40a/118/128 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 3.5 m |
| Reflector distance | - |
| Threshold detection range | 4 m |
| Reference target | H50 reflector |
| Light source | LED |
| Light type | modulated visible red light , 632 nm |
| Polarization filter | yes |
| Diameter of the light spot | 160 mm at a distance of 3500 mm |
| Opening angle | 3 Β° |
| Optical face | lateral |
| Control elements | Sensitivity adjuster, light/dark switch |
| Operating voltage | 10 ... 30 V DC , class 2 |
| Ripple | - |
| No-load supply current | < 25 mA |
| Switching type | light/dark on, switchable |
| Signal output | Push-pull (4 in 1) output short-circuit protected overvoltage protected |
| Switching voltage | 30 V DC |
| Switching current | max. 200 mA |
| Voltage drop | β€ 2.5 V DC |
| Switching frequency | 500 Hz |
| Response time | 1 ms |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -30 ... 70 Β°C (-22 ... 158 Β°F) |
| Degree of protection | IP67 |
| Connection | 4-pin, M12 x 1 connector |
| Mass | 60 g |
| Cable length | - |
