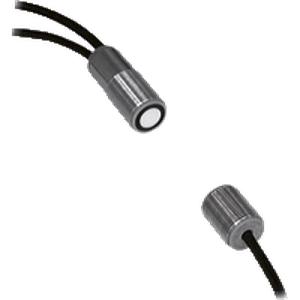

Pepperl Fuchs ULB-18GM50-255-2E1: Double Sheet Sensor
The Pepperl Fuchs ULB-18GM50-255-2E1 Double Sheet Sensor offers a 20 ... 60 mm , optimal distance: 45 mm sensing range, 2 switch outputs NPN, NC output type, and cable PVC , 2 m connection. Manufactured by Pepperl Fuchs under the P&F Double Sheet Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Double Sheet Sensor |
| Model Number | ULB-18GM50-255-2E1 |
Pepperl Fuchs Double Sheet Sensor ULB-18GM50-255-2E1 Technical Specifications
| Specification | Value |
|---|---|
| Sensing range | 20 ... 60 mm , optimal distance: 45 mm |
| Transducer frequency | 255 kHz |
| LED green | Display: readiness |
| LED yellow | Display: readiness |
| LED red | Display: error |
| Operating voltage | 18 ... 30 V DC , ripple 10 %SS |
| No-load supply current | < 60 mA |
| Time delay before availability | < 500 ms |
| Input type | Teach-In input0-level: -UB... -UB+ 1V1-level: +UB- 1 V ... +UB |
| Pulse length | β₯ 500 ms |
| Impedance | β₯ 10 kΞ© |
| Output type | 2 switch outputs NPN, NC |
| Rated operating current | 2 x 100 mA , short-circuit/overload protected |
| Voltage drop | β€ 3 V |
| Switch-on delay | β€ 600 Β΅s |
| Switch-off delay | β€ 600 Β΅s |
| Ambient temperature | 0 ... 60 Β°C (32 ... 140 Β°F) |
| Storage temperature | -40 ... 70 Β°C (-40 ... 158 Β°F) |
| Connection type | cable PVC , 2 m |
| Core cross section | 0.14 mm2 |
| Degree of protection | IP67 |
| Mass | 150 g |
| Power consumption | - |
