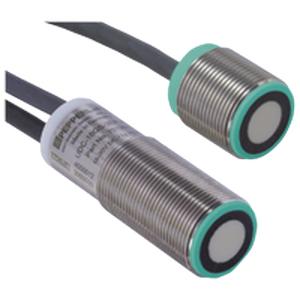

Pepperl Fuchs UDC-18GS-3EP1-IO-0,2M-V19: Double Sheet Sensor
The Pepperl Fuchs UDC-18GS-3EP1-IO-0,2M-V19 Double Sheet Sensor offers a 20 ... 60 mm , optimal distance: 45 mm sensing range, Push-pull (4 in 1) output , NC contact ( programmable ) output type, and fixed cable with plug connection. Manufactured by Pepperl Fuchs under the P&F Double Sheet Sensor category.
| Brand | Pepperl Fuchs |
| Product Type | Double Sheet Sensor |
| Model Number | UDC-18GS-3EP1-IO-0,2M-V19 |
Pepperl Fuchs Double Sheet Sensor UDC-18GS-3EP1-IO-0,2M-V19 Technical Specifications
| Specification | Value |
|---|---|
| Sensing range | 20 ... 60 mm , optimal distance: 45 mm |
| Transducer frequency | approx. 255 kHz |
| LED green | indication: single sheet detectedflashing (1 Hz) - standby modeflashing with short break (1 Hz) - IO-Link mode |
| LED yellow | indication: single sheet detectedflashing (1 Hz) - standby modeflashing with short break (1 Hz) - IO-Link mode |
| LED red | indication: double sheet detectedflashing: device error |
| Operating voltage | 18 ... 30 V DC , ripple 10 %SS |
| No-load supply current | β€ 40 mA |
| Time delay before availability | β€ 300 ms |
| Input type | 0-level: 0 ... + 1V1-level: +UB- 1 V ... +UB |
| Pulse length | β₯ 100 ms |
| Impedance | β₯ 60 kΞ© |
| Output type | Push-pull (4 in 1) output , NC contact ( programmable ) |
| Rated operating current | 100 mA per output |
| Voltage drop | β€ 3 V |
| Switch-on delay | 15 ms (programmable) |
| Switch-off delay | 15 ms (programmable) |
| Ambient temperature | 0 ... 60 Β°C (32 ... 140 Β°F) |
| Storage temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Connection type | fixed cable with plug |
| Core cross section | - |
| Degree of protection | IP65 |
| Mass | 75 g |
| Power consumption | β€ 550 mW |
