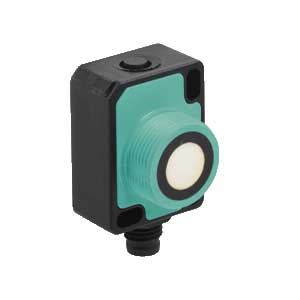

Pepperl Fuchs UC800-F77S-EP-IO-V31 Ultrasonic Sensor
The Pepperl Fuchs UC800-F77S-EP-IO-V31 Ultrasonic Sensor offers a Rectangular design, 60 ... 800 mm sensing range, 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected output, and Connector plug M8 x 1 , 4-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UC800-F77S-EP-IO-V31 |
Pepperl Fuchs UC800-F77S-EP-IO-V31 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Rectangular |
| Sensing range | 60 ... 800 mm |
| Adjustment range | 70 ... 800 mm |
| Dead band | 70 ... 800 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 255 kHz |
| Response delay | minimum : 13 ms, factory setting: 49 ms |
| LED green | solid: power on, flashing: standby mode or IO-Link communication |
| LED yellow 1 | solid: object in evaluation range, flashing: switch point programming, object detected |
| LED yellow 2 | - |
| LED red | solid: error, flashing: switch point programming, object not detected |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected |
| Default setting | - |
| Repeat accuracy | ≤ 0.1 % of full-scale value |
| Switching frequency | factory setting: 12 Hz programmable max. 27 Hz |
| Range hysteresis | 1 % of the adjusted operating range (default settings), programmable , min. 1 mm |
| Temperature influence | ≤ ± 0.75 % of the end value (with temperature compensation) from 10 minutes after switching on the sensor ; 0.17 %/K (without temperature compensation) |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 IEC 61131-9:2013 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) When fixing with one M18 nut, the temperature range begins with 0 °C (32 °F). |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M8 x 1 , 4-pin |
| Degree of protection | IP67 |
| Material Housing | Polycarbonate |
IndMALL Automation Dealing offers P&F 800mm Diffuse Reflective Sensor UC800-F77S-EP-IO-V31 at unbeatable prices. The Main Technical Parameters of UC800-F77S-EP-IO-V31 features Diffuse Reflective, Rectangular design with a sensing range of 60 ... 800 mm and an adjustment range of 70 ... 800 mm. It has a dead band of 70 ... 800 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 255 kHz, and the response delay of minimum : 13 ms, factory setting: 49 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected. It offers repeat accuracy of ≤ 0.1 % of full-scale value, a switching frequency of factory setting: 12 Hz programmable max. 27 Hz, range hysteresis of 1 % of the adjusted operating range (default settings), programmable , min. 1 mm, and a temperature influence of ≤ ± 0.75 % of the end value (with temperature compensation) from 10 minutes after switching on the sensor ; 0.17 %/K (without temperature compensation). The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) When fixing with one M18 nut, the temperature range begins with 0 °C (32 °F). and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M8 x 1 , 4-pin, an IP67 protection rating, and an Polycarbonate housing. Take the First Step with a Quote for your P&F 800mm Diffuse Reflective Sensor requirement. Choose us for unparalleled pricing and support over other Dealers & Distributors.
