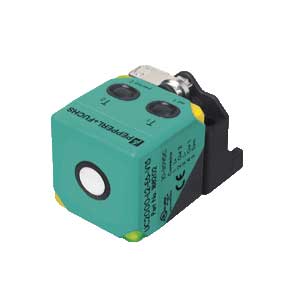

Pepperl Fuchs UC500-L2-E6-V15 Ultrasonic Sensor
The Pepperl Fuchs UC500-L2-E6-V15 Ultrasonic Sensor offers a Rectangular design, 35 ... 500 mm sensing range, 2 switch outputs PNP, NO/NC, programmable output, and Connector plug M12 x 1 , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UC500-L2-E6-V15 |
Pepperl Fuchs UC500-L2-E6-V15 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Rectangular |
| Sensing range | 35 ... 500 mm |
| Adjustment range | 50 ... 500 mm |
| Dead band | 0 ... 35 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 380 kHz |
| Response delay | minimum: 20 ms, factory setting: 55 ms |
| LED green | Operating display |
| LED yellow 1 | switching state switch output 1 |
| LED yellow 2 | switching state switch output 2 |
| LED red | error |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 2 switch outputs PNP, NO/NC, programmable |
| Default setting | - |
| Repeat accuracy | ≤ 0.1 % of full-scale value |
| Switching frequency | ≤ 14 Hz |
| Range hysteresis | programmable , preset to 1 mm |
| Temperature influence | < 1.5 % of full-scale value |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP67 |
| Material Housing | PA-GF35 |
Reach Us by Email for P&F 380 kHz Diffuse Reflective Sensor UC500-L2-E6-V15 at Discounted Rates. Key Technical Features of UC500-L2-E6-V15 are Diffuse Reflective, Rectangular design with a sensing range of 35 ... 500 mm and an adjustment range of 50 ... 500 mm. It has a dead band of 0 ... 35 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 380 kHz, and the response delay of minimum: 20 ms, factory setting: 55 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 2 switch outputs PNP, NO/NC, programmable. It offers repeat accuracy of ≤ 0.1 % of full-scale value, a switching frequency of ≤ 14 Hz, range hysteresis of programmable , preset to 1 mm, and a temperature influence of < 1.5 % of full-scale value. The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M12 x 1 , 5-pin, an IP67 protection rating, and an PA-GF35 housing. Navigate Your Needs with a Quote for your requirement of P&F 380 kHz Diffuse Reflective Sensor. Our pricing and support are unrivaled, especially when compared to other Competitors.
