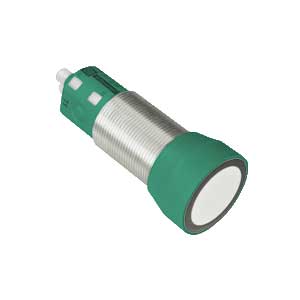

Pepperl Fuchs UC4000-30GM-IUEP-IO-V15 Ultrasonic Sensor
The Pepperl Fuchs UC4000-30GM-IUEP-IO-V15 Ultrasonic Sensor offers a Cylindrical design, 200 ... 4000 mm sensing range, 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, Current output 4 mA ... 20 mA or, voltage output 0 V ... 10 V configurable output, and Connector plug M12 x 1 , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UC4000-30GM-IUEP-IO-V15 |
Pepperl Fuchs UC4000-30GM-IUEP-IO-V15 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Cylindrical |
| Sensing range | 200 ... 4000 mm |
| Adjustment range | 240 ... 4000 mm |
| Dead band | 0 ... 200 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 85 kHz |
| Response delay | minimum : 115 ms, factory setting: 225 ms |
| LED green | solid: Power on, flashing: Standby mode or IO link communication |
| LED yellow 1 | solid: Object in evaluation range, flashing: Learning function, object detected |
| LED yellow 2 | solid: Object in evaluation range, flashing: Learning function, object detected |
| LED red | solid red: Error, red, flashing: program function, object not detected |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS, 15 ... 30 V voltage output |
| Output type | 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, Current output 4 mA ... 20 mA or, voltage output 0 V ... 10 V configurable |
| Default setting | - |
| Repeat accuracy | ≤ 0.1 % of full-scale value |
| Switching frequency | ≤ 2 Hz |
| Range hysteresis | 1 % of the adjusted operating range (default settings), programmable |
| Temperature influence | ≤ 1.5 % from full-scale value (with temperature compensation), ≤ 0.2 %/K (without temperature compensation) |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP67 |
| Material Housing | Stainless steel 1.4305 / AISI 303 TPU Polyamides |
Obtain a Quote for P&F IO-Link Diffuse Reflective Sensor UC4000-30GM-IUEP-IO-V15 at economical prices. Specifications Overview for UC4000-30GM-IUEP-IO-V15 reveals Diffuse Reflective, Cylindrical design with a sensing range of 200 ... 4000 mm and an adjustment range of 240 ... 4000 mm. It has a dead band of 0 ... 200 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 85 kHz, and the response delay of minimum : 115 ms, factory setting: 225 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, 15 ... 30 V voltage output, the sensor includes 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, Current output 4 mA ... 20 mA or, voltage output 0 V ... 10 V configurable. It offers repeat accuracy of ≤ 0.1 % of full-scale value, a switching frequency of ≤ 2 Hz, range hysteresis of 1 % of the adjusted operating range (default settings), programmable, and a temperature influence of ≤ 1.5 % from full-scale value (with temperature compensation), ≤ 0.2 %/K (without temperature compensation). The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M12 x 1 , 5-pin, an IP67 protection rating, and an Stainless steel 1.4305 / AISI 303 TPU Polyamides housing. Take the First Step with a Quote for your requirement of P&F IO-Link Diffuse Reflective Sensor. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
