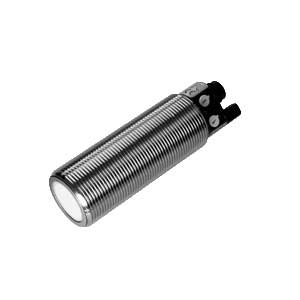

Pepperl Fuchs UC3500-30GM70-IE2R2-V15 Ultrasonic Sensor
The Pepperl Fuchs UC3500-30GM70-IE2R2-V15 Ultrasonic Sensor offers a Cylindrical design, 200 ... 3500 mm sensing range, 1 switch output PNP, NO (NC contact programmable) and 1 current output 4 ... 20 mA , ascending/descending programmable output, and Connector plug M12 x 1 , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UC3500-30GM70-IE2R2-V15 |
Pepperl Fuchs UC3500-30GM70-IE2R2-V15 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Cylindrical |
| Sensing range | 200 ... 3500 mm |
| Adjustment range | 300 ... 3500 mm |
| Dead band | 0 ... 200 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 120 kHz |
| Response delay | ≤ 150 ms |
| LED green | Teach-In |
| LED yellow 1 | switching state switching output |
| LED yellow 2 | object in evaluation range |
| LED red | - |
| Operating voltage | 20 ... 30 V DC (including ripple) |
| Output type | 1 switch output PNP, NO (NC contact programmable) and 1 current output 4 ... 20 mA , ascending/descending programmable |
| Default setting | 300 ... 3500 mm ( adjustable via potentiometer ) |
| Repeat accuracy | ± 5 mm |
| Switching frequency | ≤ 2 Hz |
| Range hysteresis | 35 mm ( programmable ) |
| Temperature influence | - |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP65 |
| Material Housing | brass, nickel-plated |
IndMALL Automation Dealing offers P&F 3500mm Diffuse Reflective Sensor UC3500-30GM70-IE2R2-V15 at unbeatable prices. The Main Technical Parameters of UC3500-30GM70-IE2R2-V15 features Diffuse Reflective, Cylindrical design with a sensing range of 200 ... 3500 mm and an adjustment range of 300 ... 3500 mm. It has a dead band of 0 ... 200 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 120 kHz, and the response delay of ≤ 150 ms. Operating at 20 ... 30 V DC (including ripple), the sensor includes 1 switch output PNP, NO (NC contact programmable) and 1 current output 4 ... 20 mA , ascending/descending programmable with default 300 ... 3500 mm ( adjustable via potentiometer ). It offers repeat accuracy of ± 5 mm, a switching frequency of ≤ 2 Hz, range hysteresis of 35 mm ( programmable ). The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M12 x 1 , 5-pin, an IP65 protection rating, and an brass, nickel-plated housing. Take the First Step with a Quote for your P&F 3500mm Diffuse Reflective Sensor requirement. Choose us for unparalleled pricing and support over other Dealers & Distributors.
