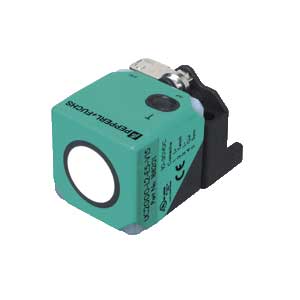

Pepperl Fuchs UC2000-L2-I-V15 Ultrasonic Sensor
The Pepperl Fuchs UC2000-L2-I-V15 Ultrasonic Sensor offers a Rectangular design, 60 ... 2000 mm sensing range, 1 analog output 4 ... 20 mA output, and Connector plug M12 x 1 , 5-pin
connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UC2000-L2-I-V15 |
Pepperl Fuchs UC2000-L2-I-V15 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Rectangular |
| Sensing range | 60 ... 2000 mm |
| Adjustment range | 80 ... 2000 mm |
| Dead band | 0 ... 60 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 175 kHz |
| Response delay | minimum: 60 ms, factory setting: 330 ms |
| LED green | Operating display |
| LED yellow 1 | object in evaluation range |
| LED yellow 2 | - |
| LED red | error |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 1 analog output 4 ... 20 mA |
| Default setting | - |
| Repeat accuracy | ≤ 0.1 % of full-scale value |
| Switching frequency | - |
| Range hysteresis | - |
| Temperature influence | ≤ 1.5 % of full-scale value |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
| UL approval | cULus Listed, General Purpose |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP67 |
| Material Housing | PA-GF35 |
Ask for the Pricing of P&F Head Bidirectional Ultrasonic Sensor UC2000-L2-I-V15 at unbeatable prices. Detailed Specifications of UC2000-L2-I-V15 feature Diffuse Reflective, Rectangular design with a sensing range of 60 ... 2000 mm and an adjustment range of 80 ... 2000 mm
. It has a dead band of 0 ... 60 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 175 kHz
, and the response delay of minimum: 60 ms, factory setting: 330 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 1 analog output 4 ... 20 mA. It offers repeat accuracy of ≤ 0.1 % of full-scale value a temperature influence of ≤ 1.5 % of full-scale value. The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F)
. It feature Connector plug M12 x 1 , 5-pin
, an IP67 protection rating, and an PA-GF35 housing. Now's the Time to Secure a Quote for your requirement of P&F Head Bidirectional Ultrasonic Sensor. We're committed to offering more favorable pricing and more responsive support than other Traders.
