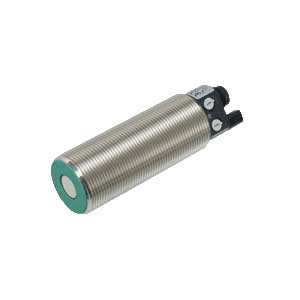

Pepperl Fuchs UC2000-30GM70-UE2R2-V15 Ultrasonic Sensor
The Pepperl Fuchs UC2000-30GM70-UE2R2-V15 Ultrasonic Sensor offers a Cylindrical design, 100 ... 2000 mm sensing range, 1 switch output PNP, NO ( NC contact programmable ) and 1 voltage output 0 ... 10 V , ascending/descending programmable output, and Connector plug M12 x 1 , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UC2000-30GM70-UE2R2-V15 |
Pepperl Fuchs UC2000-30GM70-UE2R2-V15 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Cylindrical |
| Sensing range | 100 ... 2000 mm |
| Adjustment range | 150 ... 2000 mm |
| Dead band | 0 ... 100 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 200 kHz |
| Response delay | ≤ 100 ms |
| LED green | Teach-In |
| LED yellow 1 | switching state switch output |
| LED yellow 2 | object in evaluation range |
| LED red | - |
| Operating voltage | 20 ... 30 V DC (including ripple) |
| Output type | 1 switch output PNP, NO ( NC contact programmable ) and 1 voltage output 0 ... 10 V , ascending/descending programmable |
| Default setting | 150 ... 2000 mm ( adjustable via potentiometer ) |
| Repeat accuracy | ± 3 mm |
| Switching frequency | ≤ 4 Hz |
| Range hysteresis | Switching hysteresis, 20 mm ( programmable ) |
| Temperature influence | - |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP65 |
| Material Housing | brass, nickel-plated |
Give Us a Call for Pepperl Fuchs 200 kHz Ultrasonic Sensor UC2000-30GM70-UE2R2-V15 at the lowest pricing. In-depth Technical Analysis of UC2000-30GM70-UE2R2-V15 feature Diffuse Reflective, Cylindrical design with a sensing range of 100 ... 2000 mm and an adjustment range of 150 ... 2000 mm. It has a dead band of 0 ... 100 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 200 kHz, and the response delay of ≤ 100 ms. Operating at 20 ... 30 V DC (including ripple), the sensor includes 1 switch output PNP, NO ( NC contact programmable ) and 1 voltage output 0 ... 10 V , ascending/descending programmable with default 150 ... 2000 mm ( adjustable via potentiometer ). It offers repeat accuracy of ± 3 mm, a switching frequency of ≤ 4 Hz, range hysteresis of Switching hysteresis, 20 mm ( programmable ). The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M12 x 1 , 5-pin, an IP65 protection rating, and an brass, nickel-plated housing. Elevate Your Project with a Quote for your requirement of Pepperl Fuchs 200 kHz Ultrasonic Sensor. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
