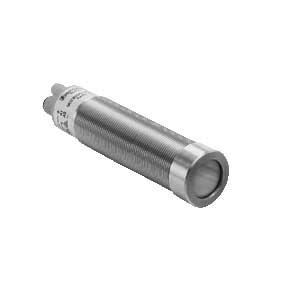

Pepperl Fuchs UC2000-30GM-IUEP-IO-V15 Ultrasonic Sensor
The Pepperl Fuchs UC2000-30GM-IUEP-IO-V15 Ultrasonic Sensor offers a Cylindrical design, 90 ... 2000 mm sensing range, 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, Current output 4 mA ... 20 mA or, voltage output 0 V ... 10 V, configurable output, and Connector plug M12 x 1 , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UC2000-30GM-IUEP-IO-V15 |
Pepperl Fuchs UC2000-30GM-IUEP-IO-V15 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Cylindrical |
| Sensing range | 90 ... 2000 mm |
| Adjustment range | 120 ... 2000 mm |
| Dead band | 0 ... 90 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 200 kHz |
| Response delay | minimum : 65 ms, factory setting: 125 ms |
| LED green | solid: Power on, flashing: Standby mode or IO link communication |
| LED yellow 1 | solid: Object in evaluation range, flashing: Learning function, object detected |
| LED yellow 2 | solid: Object in evaluation range, flashing: Learning function, object detected |
| LED red | solid red: Error, red, flashing: program function, object not detected |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS, 15 ... 30 V voltage output |
| Output type | 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, Current output 4 mA ... 20 mA or, voltage output 0 V ... 10 V, configurable |
| Default setting | - |
| Repeat accuracy | β€ 0.1 % of full-scale value |
| Switching frequency | β€ 4 Hz |
| Range hysteresis | 1 % of the adjusted operating range (default settings), programmable |
| Temperature influence | β€ 1.5 % from full-scale value (with temperature compensation), β€ 0.2 %/K (without temperature compensation) |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated β€36 V |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP67 |
| Material Housing | Stainless steel 1.4305 / AISI 303 TPU Polyamides |
Mail Us for your needs in P&F 200 kHz Diffuse Reflective Sensor UC2000-30GM-IUEP-IO-V15 with budget-friendly prices. The Main Technical Parameters of UC2000-30GM-IUEP-IO-V15 include Diffuse Reflective, Cylindrical design with a sensing range of 90 ... 2000 mm and an adjustment range of 120 ... 2000 mm. It has a dead band of 0 ... 90 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 200 kHz, and the response delay of minimum : 65 ms, factory setting: 125 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, 15 ... 30 V voltage output, the sensor includes 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, Current output 4 mA ... 20 mA or, voltage output 0 V ... 10 V, configurable. It offers repeat accuracy of β€ 0.1 % of full-scale value, a switching frequency of β€ 4 Hz, range hysteresis of 1 % of the adjusted operating range (default settings), programmable, and a temperature influence of β€ 1.5 % from full-scale value (with temperature compensation), β€ 0.2 %/K (without temperature compensation). The sensor operates in ambient temperatures from -25 ... 70 Β°C (-13 ... 158 Β°F) and can be stored in temperatures from -40 ... 85 Β°C (-40 ... 185 Β°F). It feature Connector plug M12 x 1 , 5-pin, an IP67 protection rating, and an Stainless steel 1.4305 / AISI 303 TPU Polyamides housing. Customize Your Experience with a Quote for your requirement of P&F 200 kHz Diffuse Reflective Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
