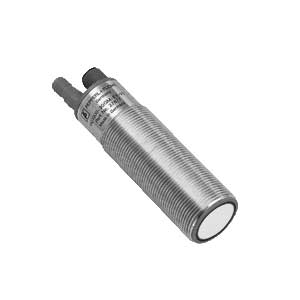

Pepperl Fuchs UC2000-30GM-E6R2-V15 Ultrasonic Sensor
The Pepperl Fuchs UC2000-30GM-E6R2-V15 Ultrasonic Sensor offers a Cylindrical design, 80 ... 2000 mm sensing range, 2 switch outputs PNP, NO/NC, programmable output, and Connector plug M12 x 1 , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UC2000-30GM-E6R2-V15 |
Pepperl Fuchs UC2000-30GM-E6R2-V15 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Cylindrical |
| Sensing range | 80 ... 2000 mm |
| Adjustment range | 120 ... 2000 mm |
| Dead band | 0 ... 80 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 180 kHz |
| Response delay | 65 ms minimum, 195 ms factory setting |
| LED green | solid: Power-on flashing: Standby mode or program function object detected |
| LED yellow 1 | solid: switching state switch output 1, flashing: program function |
| LED yellow 2 | solid: switching state switch output 2, flashing: program function |
| LED red | solid: temperature/program plug not connected, flashing: fault or program function object not detected |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 2 switch outputs PNP, NO/NC, programmable |
| Default setting | - |
| Repeat accuracy | β€ 0.1 % of full-scale value |
| Switching frequency | β€ 2.5 Hz |
| Range hysteresis | 1 % of the adjusted operating range (default settings), programmable |
| Temperature influence | β€ 2 % from full-scale value (with temperature compensation), β€ 0.2 %/K (without temperature compensation) |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| UL approval | cULus Listed, General Purpose |
| CCC approval | CCC approval / marking not required for products rated β€36 V |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP65 |
| Material Housing | stainless steel (1.4305 / AISI 303) PBT plastic parts |
IndMALL Automation Dealing offers P&F 2000mm Cylindrical Ultrasonic Sensor UC2000-30GM-E6R2-V15 at unbeatable prices. The Main Technical Parameters of UC2000-30GM-E6R2-V15 features Diffuse Reflective, Cylindrical design with a sensing range of 80 ... 2000 mm and an adjustment range of 120 ... 2000 mm. It has a dead band of 0 ... 80 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 180 kHz, and the response delay of 65 ms minimum, 195 ms factory setting. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 2 switch outputs PNP, NO/NC, programmable. It offers repeat accuracy of β€ 0.1 % of full-scale value, a switching frequency of β€ 2.5 Hz, range hysteresis of 1 % of the adjusted operating range (default settings), programmable, and a temperature influence of β€ 2 % from full-scale value (with temperature compensation), β€ 0.2 %/K (without temperature compensation). The sensor operates in ambient temperatures from -25 ... 70 Β°C (-13 ... 158 Β°F) and can be stored in temperatures from -40 ... 85 Β°C (-40 ... 185 Β°F). It feature Connector plug M12 x 1 , 5-pin, an IP65 protection rating, and an stainless steel (1.4305 / AISI 303) PBT plastic parts housing. Take the First Step with a Quote for your P&F 2000mm Cylindrical Ultrasonic Sensor requirement. Choose us for unparalleled pricing and support over other Dealers & Distributors.
