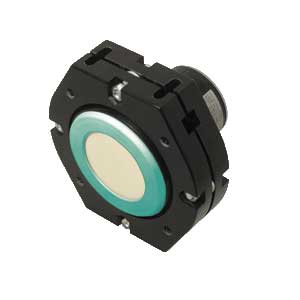

Pepperl Fuchs UC10000-F260-IE8R2 Ultrasonic Sensor
The Pepperl Fuchs UC10000-F260-IE8R2 Ultrasonic Sensor offers a Cylindrical design, 800 ... 10000 mm sensing range, 2 switch outputs PNP, NO and 1 current output 4 ... 20 mA rising ramp output, and screw terminals , PG 13.5 cable gland connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UC10000-F260-IE8R2 |
Pepperl Fuchs UC10000-F260-IE8R2 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Cylindrical |
| Sensing range | 800 ... 10000 mm |
| Adjustment range | 800 ... 10000 mm |
| Dead band | 0 ... 800 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 60 kHz |
| Response delay | - |
| LED green | - |
| LED yellow 1 | solid: switching state switch output flashing: misadjustment |
| LED yellow 2 | - |
| LED red | - |
| Operating voltage | 15 ... 30 V (including ripple), In supply voltage interval 15 ... 20 V sensitivity reduced to 20% ... 0% |
| Output type | 2 switch outputs PNP, NO and 1 current output 4 ... 20 mA rising ramp |
| Default setting | 800 ... 10000 mm |
| Repeat accuracy | ± 15 mm |
| Switching frequency | - |
| Range hysteresis | - |
| Temperature influence | - |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
| UL approval | cULus Listed, General Purpose |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | screw terminals , PG 13.5 cable gland |
| Degree of protection | IP65 |
| Material Housing | UP 1225 SF/R8 |
Mail Us for P&F 60 kHz Diffuse Reflective Sensor UC10000-F260-IE8R2 at the lowest pricing. Technical Specs Summary of UC10000-F260-IE8R2, are Diffuse Reflective, Cylindrical design with a sensing range of 800 ... 10000 mm and an adjustment range of 800 ... 10000 mm. It has a dead band of 0 ... 800 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 60 kHz, and the response delay of -. Operating at 15 ... 30 V (including ripple), In supply voltage interval 15 ... 20 V sensitivity reduced to 20% ... 0%, the sensor includes 2 switch outputs PNP, NO and 1 current output 4 ... 20 mA rising ramp with default 800 ... 10000 mm. It offers repeat accuracy of ± 15 mm. The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature screw terminals , PG 13.5 cable gland, an IP65 protection rating, and an UP 1225 SF/R8 housing. Navigate Your Needs with a Quote for your requirement of P&F 60 kHz Diffuse Reflective Sensor. We excel in offering more cost-effective and supportive solutions than other Competitors.
