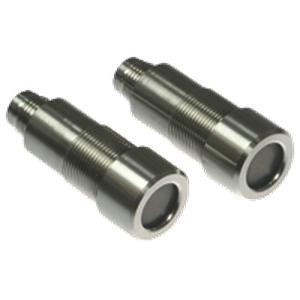

Pepperl Fuchs UBEC300-18GH40-SE2-V1 Ultrasonic Sensor
The Pepperl Fuchs UBEC300-18GH40-SE2-V1 Ultrasonic Sensor offers a 100 ... 300 mm sensing range, PNP, NO output, and Connector plug M12 x 1 , 4-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the through beam sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UBEC300-18GH40-SE2-V1 |
Pepperl Fuchs UBEC300-18GH40-SE2-V1 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing range | 100 ... 300 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 255 kHz |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| No-load supply current | ≤ 20 mA |
| Time delay before availability | - |
| Input type | 1 program input [receiver]switch point 1: -UB... +1 V, switch point 2: +6 V ... +UBinput impedance: > 4.7 kΩ pulse duration: ≥ 1 s1 test input [emitter]emitter deactivated: +6 V ... +UBinput impedance: > 4.7 kΩ |
| Output type | PNP, NO |
| Rated operating current | 200 mA , short-circuit/overload protected |
| Voltage drop | ≤ 3 V |
| Switching frequency | ≤ 100 Hz |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Shock resistance | - |
| Vibration resistance | - |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Degree of protection | IP68 / IP69K |
| Mass | 25 g |
