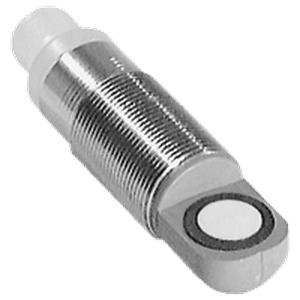

Pepperl Fuchs UBE500-18GM40A-E2-V1-Y220366 Ultrasonic Sensor
The Pepperl Fuchs UBE500-18GM40A-E2-V1-Y220366 Ultrasonic Sensor offers a 100 ... 500 mm sensing range, PNP, NO output, and Connector plug M12 x 1 , 4-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the through beam sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UBE500-18GM40A-E2-V1-Y220366 |
Pepperl Fuchs UBE500-18GM40A-E2-V1-Y220366 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing range | 100 ... 500 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 390 kHz |
| LED green | Power on |
| LED yellow | switching state |
| Rated operating voltage | - |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| No-load supply current | ≤ 20 mA |
| Input type | 1 program inputoperating distance 1: -UB... +1 V, operating distance 2: +6 V ... +UBinput impedance: > 4,7 kΩ program pulse: ≥ 1 s |
| Output type | PNP, NO |
| Rated operating current | 200 mA , short-circuit/overload protected |
| Voltage drop | ≤ 3 V |
| Switching frequency | ≤ 100 Hz |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Shock resistance | - |
| Vibration resistance | - |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Degree of protection | IP67 |
| Mass | 25 g |
