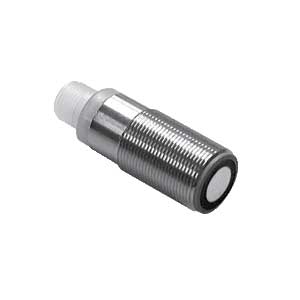

Pepperl Fuchs UB800-18GM40-E5-V1 Ultrasonic Sensor
The Pepperl Fuchs UB800-18GM40-E5-V1 Ultrasonic Sensor offers a Cylindrical design, 50 ... 800 mm sensing range, 1 switching output E5, PNP NO/NC, programmable output, and Connector plug M12 x 1 , 4-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UB800-18GM40-E5-V1 |
Pepperl Fuchs UB800-18GM40-E5-V1 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Cylindrical |
| Sensing range | 50 ... 800 mm |
| Adjustment range | 70 ... 800 mm |
| Dead band | 0 ... 50 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 255 kHz |
| Response delay | approx. 100 ms |
| LED green | Power on |
| LED yellow 1 | indication of the switching state flashing: program function object detected |
| LED yellow 2 | - |
| LED red | solid red: Error red, flashing: program function, object not detected |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 1 switching output E5, PNP NO/NC, programmable |
| Default setting | Switch point A1: 70 mm , Switch point A2: 800 mm |
| Repeat accuracy | β€ 1 % |
| Switching frequency | β€ 4 Hz |
| Range hysteresis | 1 % of the set operating distance |
| Temperature influence | Β± 1.5 % of full-scale value |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated β€36 V |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Degree of protection | IP67 |
| Material Housing | brass, nickel-plated |
Get A Quote for P&F 5 Different Output Ultrasonic Sensor UB800-18GM40-E5-V1 at the best price. Here are the brief Technical Specifications of UB800-18GM40-E5-V1, are Diffuse Reflective, Cylindrical design with a sensing range of 50 ... 800 mm and an adjustment range of 70 ... 800 mm. It has a dead band of 0 ... 50 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 255 kHz, and the response delay of approx. 100 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 1 switching output E5, PNP NO/NC, programmable with default Switch point A1: 70 mm , Switch point A2: 800 mm. It offers repeat accuracy of β€ 1 %, a switching frequency of β€ 4 Hz, range hysteresis of 1 % of the set operating distance, and a temperature influence of Β± 1.5 % of full-scale value. The sensor operates in ambient temperatures from -25 ... 70 Β°C (-13 ... 158 Β°F) and can be stored in temperatures from -40 ... 85 Β°C (-40 ... 185 Β°F). It feature Connector plug M12 x 1 , 4-pin, an IP67 protection rating, and an brass, nickel-plated housing. It's Time to get a Quote for your requirement of P&F 5 Different Output Ultrasonic Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
