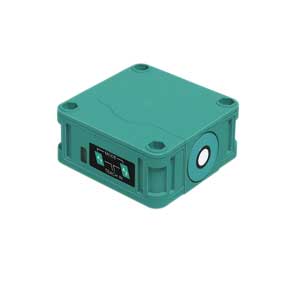

Pepperl Fuchs UB500-F42S-E5-V15 Ultrasonic Sensor
The Pepperl Fuchs UB500-F42S-E5-V15 Ultrasonic Sensor offers a Rectangular design, 30 ... 500 mm sensing range, 1 switching output E5, PNP NO/NC, programmable output, and Connector plug M12 x 1 , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UB500-F42S-E5-V15 |
Pepperl Fuchs UB500-F42S-E5-V15 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Rectangular |
| Sensing range | 30 ... 500 mm |
| Adjustment range | 50 ... 500 mm |
| Dead band | 0 ... 30 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 390 kHz |
| Response delay | approx. 50 ms |
| LED green | solid green: Power on |
| LED yellow 1 | solid: switching state switch output, flashing: program function |
| LED yellow 2 | - |
| LED red | normal operation: "fault", program function: no object detected |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 1 switching output E5, PNP NO/NC, programmable |
| Default setting | Switch point A1: 50 mm , Switch point A2: 500 mm , wide sound lobe |
| Repeat accuracy | ≤ 0.5 % of switching point |
| Switching frequency | ≤ 8 Hz |
| Range hysteresis | 1 % of the set operating distance |
| Temperature influence | ± 1 % of full-scale value |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP54 |
| Material Housing | ABS |
Please speak to our Technical Engineer for P&F 500mm Rectangular Ultrasonic Sensor UB500-F42S-E5-V15 at attractive prices. Technical Specs Summary of UB500-F42S-E5-V15 includes Diffuse Reflective, Rectangular design with a sensing range of 30 ... 500 mm and an adjustment range of 50 ... 500 mm. It has a dead band of 0 ... 30 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 390 kHz, and the response delay of approx. 50 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 1 switching output E5, PNP NO/NC, programmable with default Switch point A1: 50 mm , Switch point A2: 500 mm , wide sound lobe. It offers repeat accuracy of ≤ 0.5 % of switching point, a switching frequency of ≤ 8 Hz, range hysteresis of 1 % of the set operating distance, and a temperature influence of ± 1 % of full-scale value. The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M12 x 1 , 5-pin, an IP54 protection rating, and an ABS housing. Match Your Needs with a Quote for your requirement of P&F 500mm Rectangular Ultrasonic Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
