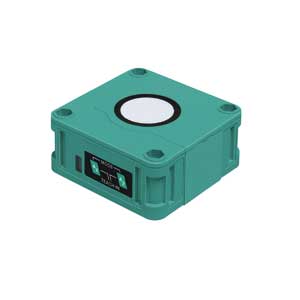

Pepperl Fuchs UB3000-F42-UK-V95 Ultrasonic Sensor
The Pepperl Fuchs UB3000-F42-UK-V95 Ultrasonic Sensor offers a Rectangular design, 200 ... 3000 mm sensing range, 1 relay output output, and 5-pin V95 connector (7/8"-16 UN 2A) connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UB3000-F42-UK-V95 |
Pepperl Fuchs UB3000-F42-UK-V95 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Rectangular |
| Sensing range | 200 ... 3000 mm |
| Adjustment range | 240 ... 3000 mm |
| Dead band | 0 ... 200 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 85 kHz |
| Response delay | approx. 325 ms |
| LED green | solid green: Power on |
| LED yellow 1 | solid: switching state switch output, flashing: program function |
| LED yellow 2 | - |
| LED red | normal operation: "fault", program function: no object detected |
| Operating voltage | 22 ... 253 V AC/DC |
| Output type | 1 relay output |
| Default setting | - |
| Repeat accuracy | β€ 0.5 % of switching point |
| Switching frequency | β€ 1.5 Hz |
| Range hysteresis | 1 % of the set operating distance |
| Temperature influence | Β± 1 % of full-scale value |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| UL approval | EAC conformity TR CU 004/2011 TR CU 020/2011 TR CU 037/2016 |
| CCC approval | - |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Connection type | 5-pin V95 connector (7/8"-16 UN 2A) |
| Degree of protection | IP65 |
| Material Housing | PBT |
IndMALL Automation Dealing offers P&F Relay Diffuse Reflective Sensor UB3000-F42-UK-V95 at unbeatable prices. The Main Technical Parameters of UB3000-F42-UK-V95 features Diffuse Reflective, Rectangular design with a sensing range of 200 ... 3000 mm and an adjustment range of 240 ... 3000 mm. It has a dead band of 0 ... 200 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 85 kHz, and the response delay of approx. 325 ms. Operating at 22 ... 253 V AC/DC, the sensor includes 1 relay output. It offers repeat accuracy of β€ 0.5 % of switching point, a switching frequency of β€ 1.5 Hz, range hysteresis of 1 % of the set operating distance, and a temperature influence of Β± 1 % of full-scale value. The sensor operates in ambient temperatures from -25 ... 70 Β°C (-13 ... 158 Β°F) and can be stored in temperatures from -40 ... 85 Β°C (-40 ... 185 Β°F). It feature 5-pin V95 connector (7/8"-16 UN 2A), an IP65 protection rating, and an PBT housing. Take the First Step with a Quote for your P&F Relay Diffuse Reflective Sensor requirement. Choose us for unparalleled pricing and support over other Dealers & Distributors.
