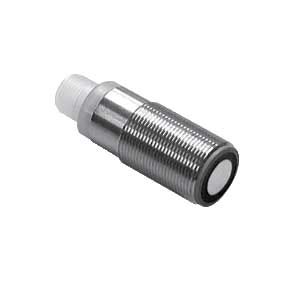

Pepperl Fuchs UB300-18GM40-E4-V1 Ultrasonic Sensor
The Pepperl Fuchs UB300-18GM40-E4-V1 Ultrasonic Sensor offers a Cylindrical design, 35 ... 300 mm sensing range, 1 switching output E4, NPN, NO/NC, programmable output, and Connector plug M12 x 1 , 4-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UB300-18GM40-E4-V1 |
Pepperl Fuchs UB300-18GM40-E4-V1 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Cylindrical |
| Sensing range | 35 ... 300 mm |
| Adjustment range | 50 ... 300 mm |
| Dead band | 0 ... 35 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 390 kHz |
| Response delay | approx. 50 ms |
| LED green | Power on |
| LED yellow 1 | indication of the switching state flashing: program function object detected |
| LED yellow 2 | - |
| LED red | solid red: Error red, flashing: program function, object not detected |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 1 switching output E4, NPN, NO/NC, programmable |
| Default setting | Switch point A1: 50 mm Switch point A2: 300 mm |
| Repeat accuracy | ≤ 1 % |
| Switching frequency | ≤ 13 Hz |
| Range hysteresis | 1 % of the set operating distance |
| Temperature influence | ± 1.5 % of full-scale value |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| UL approval | cULus Listed, Class 2 Power Source |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Degree of protection | IP67 |
| Material Housing | brass, nickel-plated |
IndMALL Automation Dealing offers Pepperl Fuchs Cylindrical Diffuse Sensor UB300-18GM40-E4-V1 at unbeatable prices. The Main Technical Parameters of UB300-18GM40-E4-V1 features Diffuse Reflective, Cylindrical design with a sensing range of 35 ... 300 mm and an adjustment range of 50 ... 300 mm. It has a dead band of 0 ... 35 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 390 kHz, and the response delay of approx. 50 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 1 switching output E4, NPN, NO/NC, programmable with default Switch point A1: 50 mm Switch point A2: 300 mm. It offers repeat accuracy of ≤ 1 %, a switching frequency of ≤ 13 Hz, range hysteresis of 1 % of the set operating distance, and a temperature influence of ± 1.5 % of full-scale value. The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M12 x 1 , 4-pin, an IP67 protection rating, and an brass, nickel-plated housing. Take the First Step with a Quote for your Pepperl Fuchs Cylindrical Diffuse Sensor requirement. Choose us for unparalleled pricing and support over other Dealers & Distributors.
