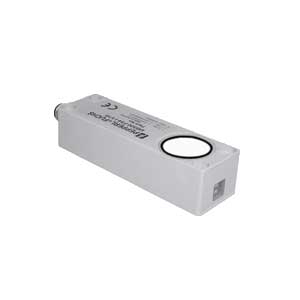

Pepperl Fuchs UB2000-F54-I-V15 Ultrasonic Sensor
The Pepperl Fuchs UB2000-F54-I-V15 Ultrasonic Sensor offers a Rectangular design, 80 ... 2000 mm sensing range, 1 analog output 4 ... 20 mA output, and Connector plug M12 x 1 , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UB2000-F54-I-V15 |
Pepperl Fuchs UB2000-F54-I-V15 Ultrasonic Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Rectangular |
| Sensing range | 80 ... 2000 mm |
| Adjustment range | 100 ... 2000 mm |
| Dead band | 0 ... 80 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 175 kHz |
| Response delay | β€ 150 ms |
| LED green | solid green: monitoring system, green flashing: program function |
| LED yellow 1 | solid yellow: object in the evaluation range, yellow, flashing: program function, object detected |
| LED yellow 2 | - |
| LED red | flashing: normal mode: error Program function: no object detected permanently:, Program mode, object uncertain |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 1 analog output 4 ... 20 mA |
| Default setting | evaluation limit A1: 100 mm evaluation limit A2: 2000 mm |
| Repeat accuracy | Β± 0.1 % of full-scale value |
| Switching frequency | - |
| Range hysteresis | - |
| Temperature influence | Β± 1.5 % of full-scale value |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 EN 60947-5-7:2003 IEC 60947-5-7:2003 |
| UL approval | cULus Listed, General Purpose |
| CCC approval | CCC approval / marking not required for products rated β€36 V |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP65 |
| Material Housing | ABS |
Mail Us for your needs in P&F 80mm Diffuse Mode Ultrasonic Sensor UB2000-F54-I-V15 with budget-friendly prices. The Main Technical Parameters of UB2000-F54-I-V15 include Diffuse Reflective, Rectangular design with a sensing range of 80 ... 2000 mm and an adjustment range of 100 ... 2000 mm. It has a dead band of 0 ... 80 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 175 kHz, and the response delay of β€ 150 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 1 analog output 4 ... 20 mA with default evaluation limit A1: 100 mm evaluation limit A2: 2000 mm. It offers repeat accuracy of Β± 0.1 % of full-scale value and a temperature influence of Β± 1.5 % of full-scale value. The sensor operates in ambient temperatures from -25 ... 70 Β°C (-13 ... 158 Β°F) and can be stored in temperatures from -40 ... 85 Β°C (-40 ... 185 Β°F). It feature Connector plug M12 x 1 , 5-pin, an IP65 protection rating, and an ABS housing. Customize Your Experience with a Quote for your requirement of P&F 80mm Diffuse Mode Ultrasonic Sensor. Experience the difference with our competitive pricing and superior support over other Suppliers.
