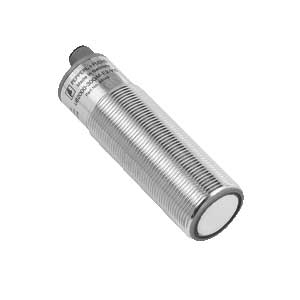

Pepperl Fuchs UB2000-30GM-E4-V15 Ultrasonic Sensor
The Pepperl Fuchs UB2000-30GM-E4-V15 Ultrasonic Sensor offers a Cylindrical design, 80 ... 2000 mm sensing range, 1 switch output NPN , Normally open/closed , programmable output, and Connector plug M12 x 1 , 5-pin connection. Manufactured by Pepperl Fuchs under the P&F Ultrasonic Sensor category, this model belongs to the diffuse reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Ultrasonic Sensor |
| Model Number | UB2000-30GM-E4-V15 |
Pepperl Fuchs UB2000-30GM-E4-V15 Ultrasonic Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Type of Sensing | Diffuse Reflective |
| Design | Cylindrical |
| Sensing range | 80 ... 2000 mm |
| Adjustment range | 120 ... 2000 mm |
| Dead band | 0 ... 80 mm |
| Standard target plate | 100 mm x 100 mm |
| Transducer frequency | approx. 180 kHz |
| Response delay | approx. 150 ms |
| LED green | solid: Power-on flashing: program function object detected |
| LED yellow 1 | solid: switching state switch output, flashing: program function |
| LED yellow 2 | - |
| LED red | normal operation: "fault", program function: no object detected |
| Operating voltage | 10 ... 30 V DC , ripple 10 %SS |
| Output type | 1 switch output NPN , Normally open/closed , programmable |
| Default setting | - |
| Repeat accuracy | ≤ 0.5 % of switching point |
| Switching frequency | ≤ 3.3 Hz |
| Range hysteresis | 1 % of the set operating distance |
| Temperature influence | < 2 % of far switch point |
| Standards | EN IEC 60947-5-2:2020 IEC 60947-5-2:2019 |
| UL approval | cULus Listed, General Purpose |
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Connection type | Connector plug M12 x 1 , 5-pin |
| Degree of protection | IP65 |
| Material Housing | nickel plated brass; plastic components: PBT |
Get A Quote for P&F 150ms Cylindrical Ultrasonic Sensor UB2000-30GM-E4-V15 at the best price. Here are the brief Technical Specifications of UB2000-30GM-E4-V15, are Diffuse Reflective, Cylindrical design with a sensing range of 80 ... 2000 mm and an adjustment range of 120 ... 2000 mm. It has a dead band of 0 ... 80 mm and uses a standard target plate of 100 mm x 100 mm. The transducer frequency is approximate approx. 180 kHz, and the response delay of approx. 150 ms. Operating at 10 ... 30 V DC , ripple 10 %SS, the sensor includes 1 switch output NPN , Normally open/closed , programmable. It offers repeat accuracy of ≤ 0.5 % of switching point, a switching frequency of ≤ 3.3 Hz, range hysteresis of 1 % of the set operating distance, and a temperature influence of < 2 % of far switch point. The sensor operates in ambient temperatures from -25 ... 70 °C (-13 ... 158 °F) and can be stored in temperatures from -40 ... 85 °C (-40 ... 185 °F). It feature Connector plug M12 x 1 , 5-pin, an IP65 protection rating, and an nickel plated brass; plastic components: PBT housing. It's Time to get a Quote for your requirement of P&F 150ms Cylindrical Ultrasonic Sensor. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
