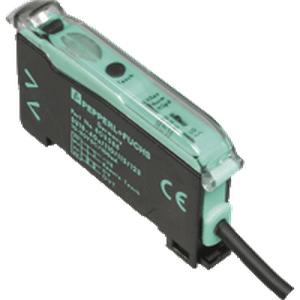

Home Products Fiber Optic Sensor Pepperl Fuchs SU18-40a/110/115a/123 Pepperl Fuchs SU18-40a/110/115a/123 Fiber Optic Sensor The Pepperl Fuchs SU18-40a/110/115a/123 Fiber Optic Sensor offers a up to 150 mm (KLR-C02-2,2-2,0-K146) sensor range, modulated visible red light , 660 nm light type, and 200 mm, PVC cable with M8 connector, 4-pin connection. Manufactured by Pepperl Fuchs under the P&F Fiber Optic Sensor category.
Brand Pepperl Fuchs Product Type Fiber Optic Sensor Model number SU18-40a/110/115a/123
Pepperl Fuchs SU18-40a/110/115a/123 Fiber Optic Sensor β Technical Specifications Specification Value Sensor range up to 150 mm (KLR-C02-2,2-2,0-K146) Detection range up to 450 mm (KLE-C01-2,2-2,0-K116) Light source LED Light type modulated visible red light , 660 nm Ambient light limit 10000 Lux Operation indicator LED green, statically lit Power on , Undervoltage indicator: Green LED, pulsing (approx. 0.8 Hz) , short-circuit : LED green flashing (approx. 4 Hz) Function indicator LED yellow: static illumination switching state, flashes when falling short of the operating reserve Operating voltage 10 ... 30 V DC Switching type light/dark on, switchable Signal output 1 push-pull (4 in 1) output NPN/PNP , short-circuit protected Switching voltage max. 30 V DC Switching current max. 100 mA , resistive load Voltage drop β€ 2 V DC at 100 mA ; β€ 0.7 V at 10 mA Switching frequency Standard mode: 3 kHz , High speed mode: 6 kHz , High resolution: 500 Hz Response time Standard mode: 160 Β΅s , High speed mode: 80 Β΅s , High resolution: 1 ms Repeat accuracy β€ 0.5 % of adjusted sensor range Timer function - Ambient temperature -10 ... 55 Β°C (14 ... 131 Β°F) Storage temperature -20 ... 70 Β°C (-4 ... 158 Β°F) Degree of protection IP50 Connection 200 mm, PVC cable with M8 connector, 4-pin Mass 45 g
