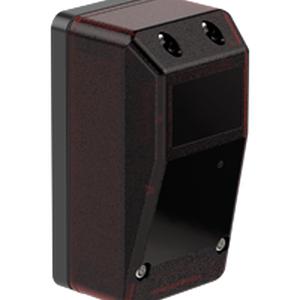

Pepperl Fuchs RP25-12M-LR-SET Photoelectric Sensor
The Pepperl Fuchs RP25-12M-LR-SET Photoelectric Sensor offers a 0.5 ... 12 m detection range, LED light source, and screw terminals for max. 1.5 mm2 connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | RP25-12M-LR-SET |
Pepperl Fuchs RP25-12M-LR-SET Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0.5 ... 12 m |
| Reflector distance | - |
| Threshold detection range | 15 m |
| Reference target | Reflector RD82 SW4 |
| Light source | LED |
| Light type | Modulated light 680 nm |
| Polarization filter | - |
| Diameter of the light spot | approx. 400 mm at a distance of 15 m |
| Opening angle | 1.5 Β° |
| Optical face | frontal |
| Control elements | - |
| Operating voltage | 24 V AC Β± 25 %10 ... 40 V DC |
| Ripple | - |
| No-load supply current | - |
| Switching type | light-on |
| Signal output | - |
| Switching voltage | max. 50 V AC max. 48 V DC |
| Switching current | DC: max. 0.5 A AC: max. 0.6 A |
| Voltage drop | - |
| Switching frequency | - |
| Response time | β€ 10 ms |
| Ambient temperature | -25 ... 60 Β°C (-13 ... 140 Β°F) |
| Storage temperature | -35 ... 80 Β°C (-31 ... 176 Β°F) |
| Degree of protection | IP65 according to EN 60529 |
| Connection | screw terminals for max. 1.5 mm2 |
| Mass | approx. 60 g |
| Cable length | - |
