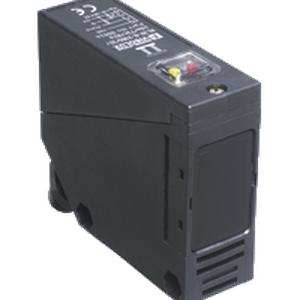

Home Pepperl Fuchs Photoelectric Sensor Diffuse Mode RLK39-8-2000-Z/31/40a/116 Pepperl Fuchs RLK39-8-2000-Z/31/40a/116 Photoelectric Sensor The Pepperl Fuchs RLK39-8-2000-Z/31/40a/116 Photoelectric Sensor offers a 0 ... 2000 mm detection range, IRED light source, and terminal compartment PG9 , ≤ 0.75 mm2 connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the diffuse mode sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number RLK39-8-2000-Z/31/40a/116
Pepperl Fuchs RLK39-8-2000-Z/31/40a/116 Photoelectric Sensor – Technical Specifications Specification Value Detection range 0 ... 2000 mm Adjustment range 200 ... 2000 mm Reference target standard white 200 mm x 200 mm Light source IRED Light type modulated infrared light Polarization filter - Diameter of the light spot - Opening angle - Optical face - Operation indicator - Function indicator LED yellow: switching stateLED red: pre-fault indication Control elements switch for timer function Operating voltage 12 ... 240 V DC24 ... 240 V AC (50 ... 60 Hz) Ripple 10 % No-load supply current ≤ 50 mA Switching type light/dark on Signal output 1 relay output Switching voltage max. 240 V AC ; 150 V DC Switching current max. 3 A Voltage drop - Switching frequency ≤ 25 Hz Response time ≤ 20 ms Ambient temperature -25 ... 55 °C (-13 ... 131 °F) Storage temperature -40 ... 70 °C (-40 ... 158 °F) Degree of protection IP54 Connection terminal compartment PG9 , ≤ 0.75 mm2 Mass approx. 110 g Tightening torque, fastening screws - Detection range min. - Detection range max. - Background suppression -
