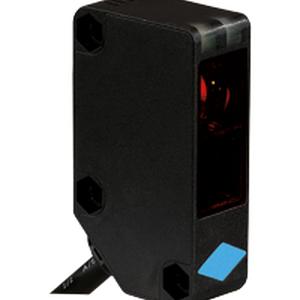

Pepperl Fuchs RLK31-6/25/31/115 Photoelectric Sensor
The Pepperl Fuchs RLK31-6/25/31/115 Photoelectric Sensor offers a 14 m detection range, LED light source, and 2 m fixed cable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | RLK31-6/25/31/115 |
Pepperl Fuchs RLK31-6/25/31/115 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 14 m |
| Reflector distance | 200 ... 14000 mm |
| Threshold detection range | 16.5 m |
| Reference target | H85-2 reflector |
| Light source | LED |
| Light type | modulated visible red light , 630 nm |
| Polarization filter | no |
| Diameter of the light spot | approx. 240 mm at a distance of 8 m |
| Opening angle | 3 Β° |
| Optical face | - |
| Control elements | - |
| Operating voltage | 24 ... 240 V AC12 ... 240 V DC |
| Ripple | - |
| No-load supply current | β€ 40 mA |
| Switching type | light-on |
| Signal output | Relay, 1 alternator |
| Switching voltage | max. 240 V AC |
| Switching current | max. 3 A |
| Voltage drop | - |
| Switching frequency | 20 Hz |
| Response time | β€ 25 ms |
| Ambient temperature | -25 ... 55 Β°C (-13 ... 131 Β°F) |
| Storage temperature | -40 ... 70 Β°C (-40 ... 158 Β°F) |
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Mass | 154 g |
| Cable length | - |
