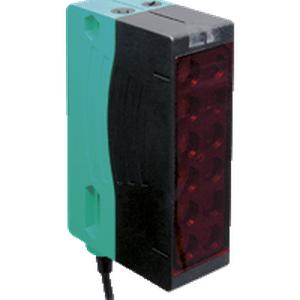

Pepperl Fuchs RLG28-55/115b/136 Photoelectric Sensor

Name: Pepperl Fuchs RLG28-55/115b/136
Brand: Pepperl Fuchs
SKU: RLG28-55/115b/136
Rating: 4.4 (4 reviews)

The Pepperl Fuchs RLG28-55/115b/136 Photoelectric Sensor offers a 0 ... 4 m detection range, LED light source, and 300 mm fixed cable with M12 x 1, 4-pin connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.

Datasheet

Brand	Pepperl Fuchs
Product Type	Photoelectric Sensor
Model Number	RLG28-55/115b/136

Pepperl Fuchs RLG28-55/115b/136 Photoelectric Sensor – Technical Specifications

Specification	Value
Effective detection range	0 ... 4 m
Reflector distance	Reflector A80: 0.4 ... 4 m , H85-2 reflector: 0.2 ... 4 m , Foil reflector OFR-100/100: 0.4 ... 3 m
Threshold detection range	5.6 m
Reference target	Reflector A80 H85-2 reflector Foil reflector OFR-100/100
Light source	LED
Light type	modulated visible red light , 625 nm
Polarization filter	yes
Diameter of the light spot	approx. 220 mm at detection range 4 m
Opening angle	#ERROR!
Optical face	-
Control elements	Teach-In key
Operating voltage	12 ... 30 V DC
Ripple	max. 10 %
No-load supply current	max. 50 mA
Switching type	light/dark on
Signal output	2 push-pull (4 in 1) outputs, complementary, short-circuit proof, reverse polarity protected
Switching voltage	max. 30 V DC
Switching current	max. 100 mA
Voltage drop	≤ 2.5 V DC
Switching frequency	230 Hz
Response time	1 ms
Ambient temperature	-30 ... 60 °C (-22 ... 140 °F)-10 ... 40 °C (14 ... 104 °F) for inactive signal tracking
Storage temperature	-40 ... 70 °C (-40 ... 158 °F)
Degree of protection	IP67
Connection	300 mm fixed cable with M12 x 1, 4-pin connector
Mass	100 g
Cable length	-
