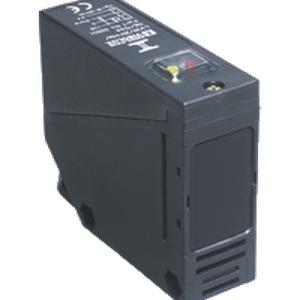

Home Products Photoelectric Sensor Pepperl Fuchs RL39-55/30/35/40a/116/126a Pepperl Fuchs RL39-55/30/35/40a/116/126a Photoelectric Sensor The Pepperl Fuchs RL39-55/30/35/40a/116/126a Photoelectric Sensor offers a 0 ... 17 m detection range, LED red light source, and terminal compartment PG9 , β€ 0.75 mm2 connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number RL39-55/30/35/40a/116/126a
Pepperl Fuchs RL39-55/30/35/40a/116/126a Photoelectric Sensor β Technical Specifications Specification Value Effective detection range 0 ... 17 m Reflector distance 0.1 ... 17 m Threshold detection range 20 m Reference target H50 reflector Light source LED red Light type modulated visible red light Polarization filter no Diameter of the light spot - Opening angle - Optical face - Control elements Sensing range adjuster, light-on/dark-on changeover switch Operating voltage 10 ... 30 V DC Ripple 10 % No-load supply current β€ 20 mA Switching type light/dark on Signal output 1 NPN output, short-circuit protected, reverse polarity protected, open collector Switching voltage max. 30 V DC Switching current max. 200 mA , resistive load Voltage drop β€ 3 V Switching frequency β€ 300 Hz Response time β€ 1.5 ms Ambient temperature -25 ... 55 Β°C (-13 ... 131 Β°F) Storage temperature -40 ... 70 Β°C (-40 ... 158 Β°F) Degree of protection IP54 Connection terminal compartment PG9 , β€ 0.75 mm2 Mass approx. 100 g Cable length -
