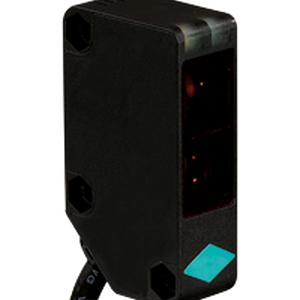

Pepperl Fuchs RL31-54/115/136-5M Photoelectric Sensor
The Pepperl Fuchs RL31-54/115/136-5M Photoelectric Sensor offers a 0 ... 9000 mm detection range, LED light source, and 5 m fixed cable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | RL31-54/115/136-5M |
Pepperl Fuchs RL31-54/115/136-5M Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 9000 mm |
| Reflector distance | 20 ... 9000 mm |
| Threshold detection range | 12 m |
| Reference target | reflector C110-2 |
| Light source | LED |
| Light type | modulated visible red light , 630 nm |
| Polarization filter | yes |
| Diameter of the light spot | approx. 200 mm at a distance of 6 m |
| Opening angle | 3 ° |
| Optical face | - |
| Control elements | - |
| Operating voltage | 10 ... 30 V DC |
| Ripple | 10 % |
| No-load supply current | ≤ 20 mA |
| Switching type | dark-on |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | ≤ 1.5 V |
| Switching frequency | ≤ 500 Hz |
| Response time | ≤ 1 ms |
| Ambient temperature | -30 ... 55 °C (-22 ... 131 °F) |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Degree of protection | IP67 |
| Connection | 5 m fixed cable |
| Mass | 133 g |
| Cable length | - |
