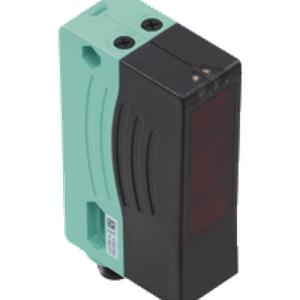

Pepperl Fuchs RL28-8-H-1500-LAS/105/110 Photoelectric Sensor
The Pepperl Fuchs RL28-8-H-1500-LAS/105/110 Photoelectric Sensor offers a 100 ... 1500 mm detection range, laser diode light source, and 5-pin, M12 x 1 plastic connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the diffuse mode sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | RL28-8-H-1500-LAS/105/110 |
Pepperl Fuchs RL28-8-H-1500-LAS/105/110 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Detection range | 100 ... 1500 mm |
| Adjustment range | - |
| Reference target | - |
| Light source | laser diode |
| Light type | modulated visible red light |
| Polarization filter | - |
| Diameter of the light spot | - |
| Opening angle | - |
| Optical face | - |
| Operation indicator | LED green |
| Function indicator | 2 LEDs yellowON: object inside the scanning rangeOFF: object outside the scanning range |
| Control elements | Sensing range adjuster , Light-on/dark-on changeover switch |
| Operating voltage | 10 ... 30 V DC |
| Ripple | 10 % |
| No-load supply current | β€ 40 mA |
| Switching type | light/dark on, switchable |
| Signal output | 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | - |
| Switching frequency | 140 Hz |
| Response time | 3.5 ms |
| Ambient temperature | -10 ... 50 Β°C (14 ... 122 Β°F) |
| Storage temperature | -40 ... 60 Β°C (-40 ... 140 Β°F) |
| Degree of protection | IP67 |
| Connection | 5-pin, M12 x 1 plastic connector |
| Mass | approx. 70 g |
| Tightening torque, fastening screws | - |
| Detection range min. | 50 ... 200 mm |
| Detection range max. | 100 ... 1500 mm |
| Background suppression | max. + 10 % of the upper limit of the detection range |
