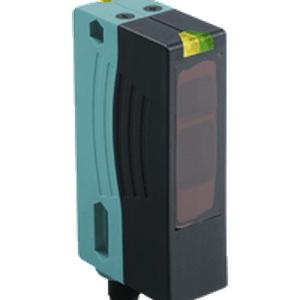

Home Products Photoelectric Sensor Pepperl Fuchs RL28-55-V/47/82b/105 Pepperl Fuchs RL28-55-V/47/82b/105 Photoelectric Sensor The Pepperl Fuchs RL28-55-V/47/82b/105 Photoelectric Sensor offers a 0 ... 13 m detection range, LED light source, and 5-pin, M12 x 1 connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number RL28-55-V/47/82b/105
Pepperl Fuchs RL28-55-V/47/82b/105 Photoelectric Sensor – Technical Specifications Specification Value Effective detection range 0 ... 13 m Reflector distance 0.5 ... 13 m (blind range 0 ... 0.2 m faded out) Threshold detection range 17 m Reference target H85-2 reflector Light source LED Light type modulated visible red light , 660 nm Polarization filter yes Diameter of the light spot approx. 220 mm at a distance of 13 m Opening angle emitter 1.2°receiver 2° Optical face - Control elements sensitivity adjustment (Adjustment to < 25% of the effective operating range) , Light-on/dark-on changeover switch Operating voltage 10 ... 30 V DC Ripple 10 % No-load supply current ≤ 40 mA Switching type light/dark on switchable Signal output 2 PNP, complementary, short-circuit protected, reverse polarity protected , open collectors Switching voltage max. 30 V DC Switching current max. 200 mA Voltage drop - Switching frequency 1000 Hz Response time 0.5 ms Ambient temperature -40 ... 60 °C (-40 ... 140 °F) Storage temperature -40 ... 60 °C (-40 ... 140 °F) Degree of protection IP67 Connection 5-pin, M12 x 1 connector Mass 70 g Cable length -
