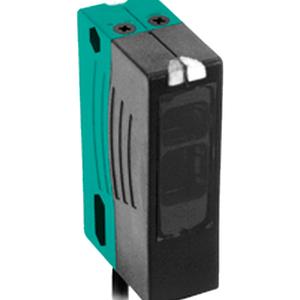

Pepperl Fuchs RL28-55-V-3018 Photoelectric Sensor

Name: Pepperl Fuchs RL28-55-V-3018
Brand: Pepperl Fuchs
SKU: RL28-55-V-3018
Rating: 4.4 (4 reviews)

The Pepperl Fuchs RL28-55-V-3018 Photoelectric Sensor offers a 0 ... 8 m detection range, LED light source, and with 0.3 m fixed cable and M12 connector, 4-pin connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.

Datasheet

Brand	Pepperl Fuchs
Product Type	Photoelectric Sensor
Model Number	RL28-55-V-3018

Pepperl Fuchs RL28-55-V-3018 Photoelectric Sensor – Technical Specifications

Specification	Value
Effective detection range	0 ... 8 m
Reflector distance	0.5 ... 8 m (blind range 0 ... 0.2 m faded out)
Threshold detection range	12 m
Reference target	H60 reflector 40 mm x 60 mm
Light source	LED
Light type	modulated visible red light , 660 nm
Polarization filter	yes
Diameter of the light spot	approx. 160 mm at a distance of 8 m
Opening angle	emitter 1.2°receiver 2°
Optical face	-
Control elements	-
Operating voltage	10 ... 30 V DC
Ripple	10 %
No-load supply current	≤ 40 mA
Switching type	light-on
Signal output	2 PNP, complementary, short-circuit protected, reverse polarity protected , open collectors
Switching voltage	max. 30 V DC
Switching current	max. 200 mA
Voltage drop	-
Switching frequency	1000 Hz
Response time	0.5 ms
Ambient temperature	-40 ... 60 °C (-40 ... 140 °F)
Storage temperature	-40 ... 60 °C (-40 ... 140 °F)
Degree of protection	IP67
Connection	with 0.3 m fixed cable and M12 connector, 4-pin
Mass	70 g
Cable length	-
