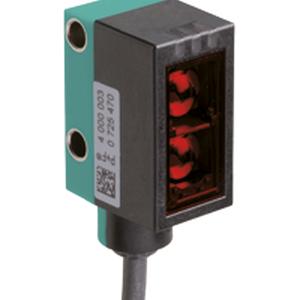

Home Products Photoelectric Sensor Pepperl Fuchs OBR7500-R101-P1-Y0429 Pepperl Fuchs OBR7500-R101-P1-Y0429 Photoelectric Sensor The Pepperl Fuchs OBR7500-R101-P1-Y0429 Photoelectric Sensor offers a 0 ... 7.5 m detection range, LED light source, and 300 mm fixed cable with M8 x 1, 3-pin connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number OBR7500-R101-P1-Y0429
Pepperl Fuchs OBR7500-R101-P1-Y0429 Photoelectric Sensor – Technical Specifications Specification Value Effective detection range 0 ... 7.5 m Reflector distance 0.03 ... 7.5 m Threshold detection range 10 m Reference target H85-2 reflector Light source LED Light type modulated visible red light Polarization filter yes Diameter of the light spot approx. 65 mm at a distance of 1 m Opening angle 3.7 ° Optical face - Control elements - Operating voltage 10 ... 30 V DC Ripple max. 10 % No-load supply current < 25 mA at 24 V supply voltage Switching type The default setting is:Q - Pin4: NPN normally closed / light-on, PNP normally open / dark-on Signal output 1 push-pull (4 in 1) output, short-circuit protected, reverse polarity protected, overvoltage protected Switching voltage max. 30 V DC Switching current max. 100 mA , resistive load Voltage drop ≤ 1.5 V DC Switching frequency 1000 Hz Response time 0.5 ms Ambient temperature -40 ... 60 °C (-40 ... 140 °F) , cable, fixed installation-25 ... 60 °C (-13 ... 140 °F) , movable cable not appropriate for conveyor chains Storage temperature -40 ... 70 °C (-40 ... 158 °F) Degree of protection IP67 / IP69 / IP69K Connection 300 mm fixed cable with M8 x 1, 3-pin connector Mass approx. 15 g Cable length 0.3 m
