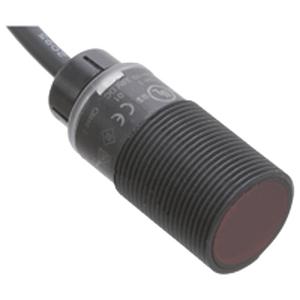

Pepperl Fuchs OBR5500-18GK40-E0 Photoelectric Sensor
The Pepperl Fuchs OBR5500-18GK40-E0 Photoelectric Sensor offers a 0 ... 5.5 m detection range, LED light source, and 2 m fixed cable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | OBR5500-18GK40-E0 |
Pepperl Fuchs OBR5500-18GK40-E0 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 5.5 m |
| Reflector distance | 0 ... 5.5 m |
| Threshold detection range | 7.8 m |
| Reference target | reflector C110-2 |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | yes |
| Diameter of the light spot | approx. 350 mm at 5.5 m |
| Opening angle | approx. 2.6 Β° |
| Optical face | frontal |
| Control elements | - |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA |
| Switching type | Q - Pin4: NPN normally open / dark-on |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | β€ 1.5 V DC |
| Switching frequency | 500 Hz |
| Response time | β€ 1 ms |
| Ambient temperature | -40 ... 60 Β°C (-40 ... 140 Β°F) |
| Storage temperature | -40 ... 70 Β°C (-40 ... 158 Β°F) |
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Mass | approx. 54 g |
| Cable length | - |
