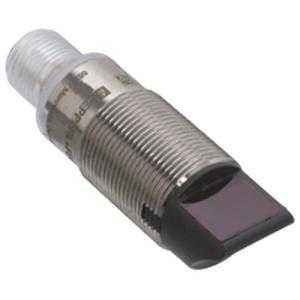

Pepperl Fuchs OBR5000-18GM40A-E0-V1 Photoelectric Sensor
The Pepperl Fuchs OBR5000-18GM40A-E0-V1 Photoelectric Sensor offers a 0 ... 5 m detection range, LED light source, and 3-pin, M12 x 1 connector connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | OBR5000-18GM40A-E0-V1 |
Pepperl Fuchs OBR5000-18GM40A-E0-V1 Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 5 m |
| Reflector distance | 0 ... 5 m |
| Threshold detection range | 7 m |
| Reference target | reflector C110-2 |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | yes |
| Diameter of the light spot | approx. 270 mm at 5 m |
| Opening angle | approx. 2.6 ยฐ |
| Optical face | lateral |
| Control elements | - |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA |
| Switching type | Q - Pin4: NPN normally open / dark-on |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | โค 1.5 V DC |
| Switching frequency | 500 Hz |
| Response time | โค 1 ms |
| Ambient temperature | -40 ... 60 ยฐC (-40 ... 140 ยฐF) |
| Storage temperature | -40 ... 70 ยฐC (-40 ... 158 ยฐF) |
| Degree of protection | IP67 |
| Connection | 3-pin, M12 x 1 connector |
| Mass | approx. 16 g |
| Cable length | - |
