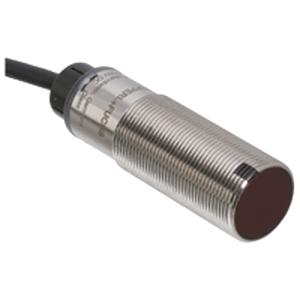

Pepperl Fuchs OBR4000-18GM60-E5-1C Photoelectric Sensor
The Pepperl Fuchs OBR4000-18GM60-E5-1C Photoelectric Sensor offers a 0 ... 4 m detection range, LED light source, and 2 m fixed cable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | OBR4000-18GM60-E5-1C |
Pepperl Fuchs OBR4000-18GM60-E5-1C Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 4 m |
| Reflector distance | 0 ... 4 m |
| Threshold detection range | 4.5 m |
| Reference target | H50 reflector |
| Light source | LED |
| Light type | modulated visible red light |
| Polarization filter | yes |
| Diameter of the light spot | approx. 190 mm at 4 m |
| Opening angle | approx. 2.6 Β° |
| Optical face | frontal |
| Control elements | light/dark on electrically switchable |
| Operating voltage | 10 ... 30 V DC |
| Ripple | max. 10 % |
| No-load supply current | < 25 mA |
| Switching type | The switching type of the sensor is adjustable. The default setting is: Q - Pin4: PNP output / dark-on L/D-On - WH: Low-active input |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA , resistive load |
| Voltage drop | β€ 2 V DC |
| Switching frequency | 500 Hz |
| Response time | β€ 1 ms |
| Ambient temperature | -40 ... 60 Β°C (-40 ... 140 Β°F) |
| Storage temperature | -40 ... 70 Β°C (-40 ... 158 Β°F) |
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Mass | approx. 70 g |
| Cable length | - |
